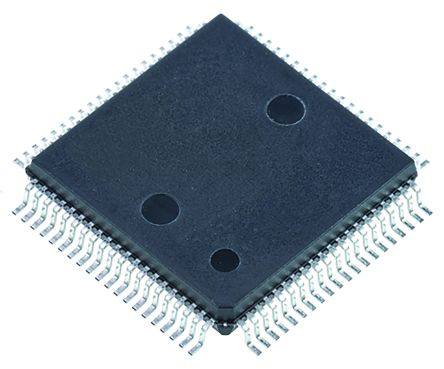

Renesas Electronics R5F11MMEAFB#30, 16bit RL78 Microcontroller, 24MHz, 64 kB Flash, 80-Pin LFQFP

R5F11MMEAFB-30 Renesas Electronics R5F11MMEAFB#30, 16bit RL78 Microcontroller, 24MHz, 64 kB Flash, 80-Pin LFQFP
Renesas Electronics

Product Information

Dimensions:
12 x 12 x 1.7mm
Number of I2C Channels:
5
Number of USART Channels:
0
USB Channels:
0
Width:
12.1mm
Program Memory Size:
64 kB
RAM Size:
5.5 kB
Data Bus Width:
16bit
Instruction Set Architecture:
CISC Harvard
Program Memory Type:
Flash
Package Type:
LFQFP
Maximum Frequency:
24MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
4
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
RL78/L1A
Device Core:
RL78
Length:
12.1mm
Number of ADC Units:
1
Pin Count:
80
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.7mm
Typical Operating Supply Voltage:
1.8 → 3.6 V
ADCs:
10 x 12 bit
Number of CAN Channels:
0
Number of SPI Channels:
4
RoHs Compliant
Checking for live stock

This is 16bit RL78 Microcontroller 24MHz 64 kB Flash 80-Pin LFQFP manufactured by Renesas Electronics. The manufacturer part number is R5F11MMEAFB#30. The given dimensions of the product include 12 x 12 x 1.7mm. Moreover, it comprises 5 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 12.1mm wide. In addition, 64 kb is the program memory size. The product has typical 5.5 kb RAM size. Moreover, the data bus width includes 16bit. The instruction set has cisc harvard architecture. It is a flash program memory type. The package is a sort of lfqfp. It features 24mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 4 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family rl78/l1a. On the other hand, the rl78 is the device core. Its accurate length is 12.1mm. It contains 1 ADC units. It contains 80 pins. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.7mm. It has 1.8 → 3.6 v of typical operating supply voltage. The ADCs included 10 x 12 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 4 SPI channels.

pdf icon
Datasheet-R5F11MMEAFB#30(Technical Reference)
