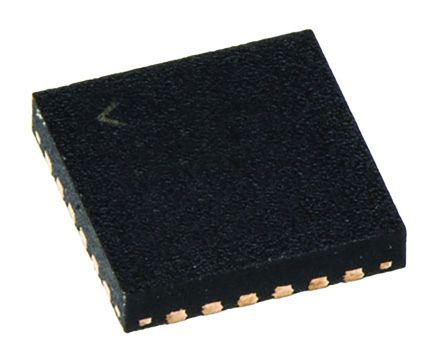

This is 16bit RL78 Microcontroller 24MHz 8 kB Flash 24-Pin HWQFN manufactured by Renesas Electronics. The manufacturer part number is R5F11778GNA#U0. The given dimensions of the product include 4.05 x 4.05 x 0.8mm. Furthermore, the product is 4.05mm wide. In addition, 8 kb is the program memory size. The product has typical 700 b RAM size. Additionally, it is composed of 6 ADC channels. It comprises 1 timers. Moreover, the data bus width includes 16bit. The instruction set has cisc architecture. It is a flash program memory type. The package is a sort of hwqfn. It features 24mhz of maximum frequency. It has a maximum operating temperature of +105 °c. The product belongs to a family rl78/i1d. On the other hand, the rl78 is the device core. The ADC has 12bit resolution. The timer has 16bit resolution. Timers options include 1(4 x 16 bit). It contains 1 ADC units. It contains 24 pins. The product is available in surface mount configuration. Its accurate length is 4.05mm. In addition, the height is 0.8mm. It has 1.6 → 3.6 v of typical operating supply voltage. The ADCs included 1 (6 x 12 bit). Whereas, the minimum operating temperature of the product is -40 °c.
For more information please check the datasheets.
