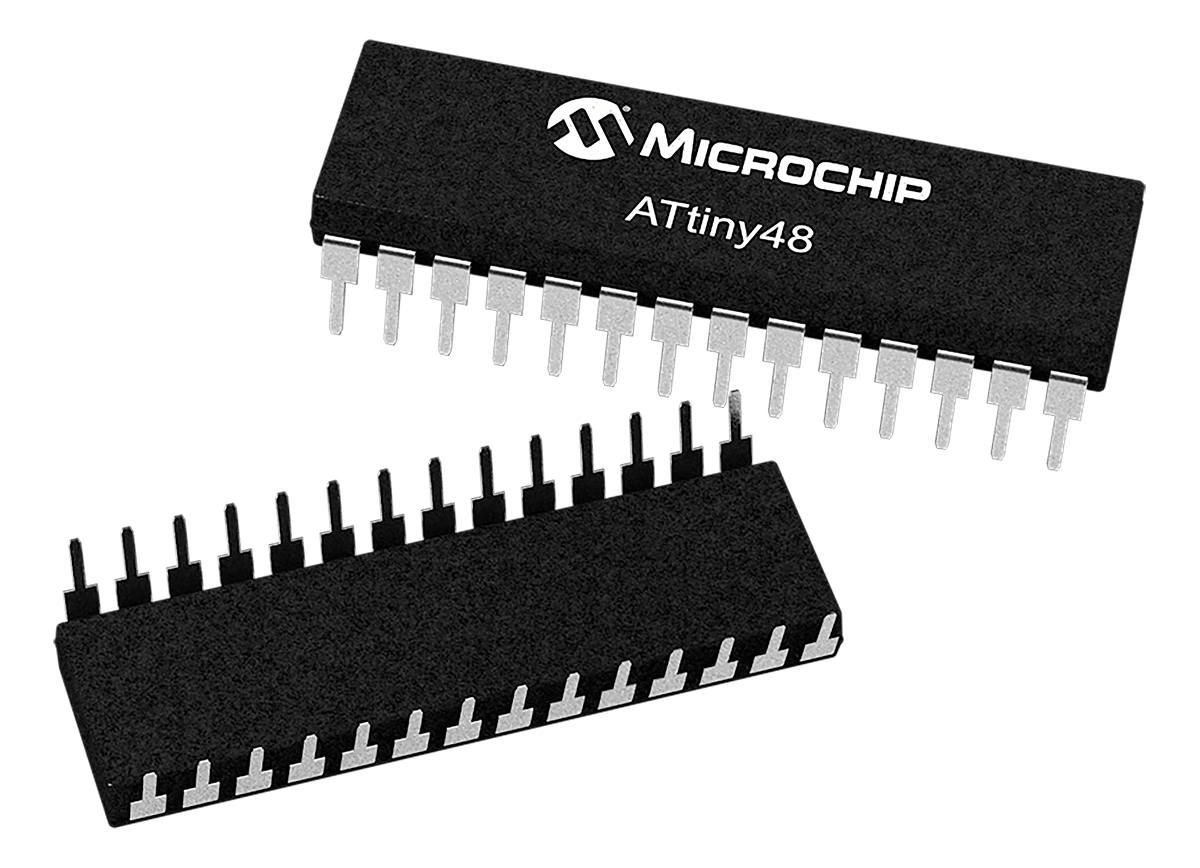

Microchip Technology ATTINY48-PU, 8bit AVR Microcontroller, 12MHz, 4 kB Flash, 28-Pin PDIP

ATTINY48-PU Microchip Technology , 8bit AVR Microcontroller, 12MHz, 4 kB Flash, 28-Pin PDIP
Microchip

Product Information

Dimensions:
34.79 x 7.49 x 4.06mm
USB Channels:
0
Width:
7.49mm
Program Memory Size:
4 kB
Number of PWM Units:
1
RAM Size:
256 B
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
PDIP
Maximum Frequency:
12MHz
Maximum Operating Temperature:
+85 °C
Family Name:
ATtiny48
Device Core:
AVR
Length:
34.79mm
Number of ADC Units:
1
Pin Count:
28
Pulse Width Modulation:
1 (2 Channel)
Mounting Type:
Through Hole
Height:
4.06mm
Typical Operating Supply Voltage:
1.8 → 5.5 V
ADCs:
8 x 10 bit
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is Technology 8bit AVR Microcontroller 12MHz 4 kB Flash 28-Pin PDIP manufactured by Microchip. The manufacturer part number is ATTINY48-PU. The given dimensions of the product include 34.79 x 7.49 x 4.06mm. The product integrates 0 USB channels. Furthermore, the product is 7.49mm wide. In addition, 4 kb is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 256 b RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of pdip. It features 12mhz of maximum frequency. It has a maximum operating temperature of +85 °c. The product belongs to a family attiny48. On the other hand, the avr is the device core. Its accurate length is 34.79mm. It contains 1 ADC units. It contains 28 pins. The product carries 1 (2 channel) of pulse width modulation. The product is available in through hole configuration. In addition, the height is 4.06mm. It has 1.8 → 5.5 v of typical operating supply voltage. The ADCs included 8 x 10 bit. Whereas, the minimum operating temperature of the product is -40 °c.
