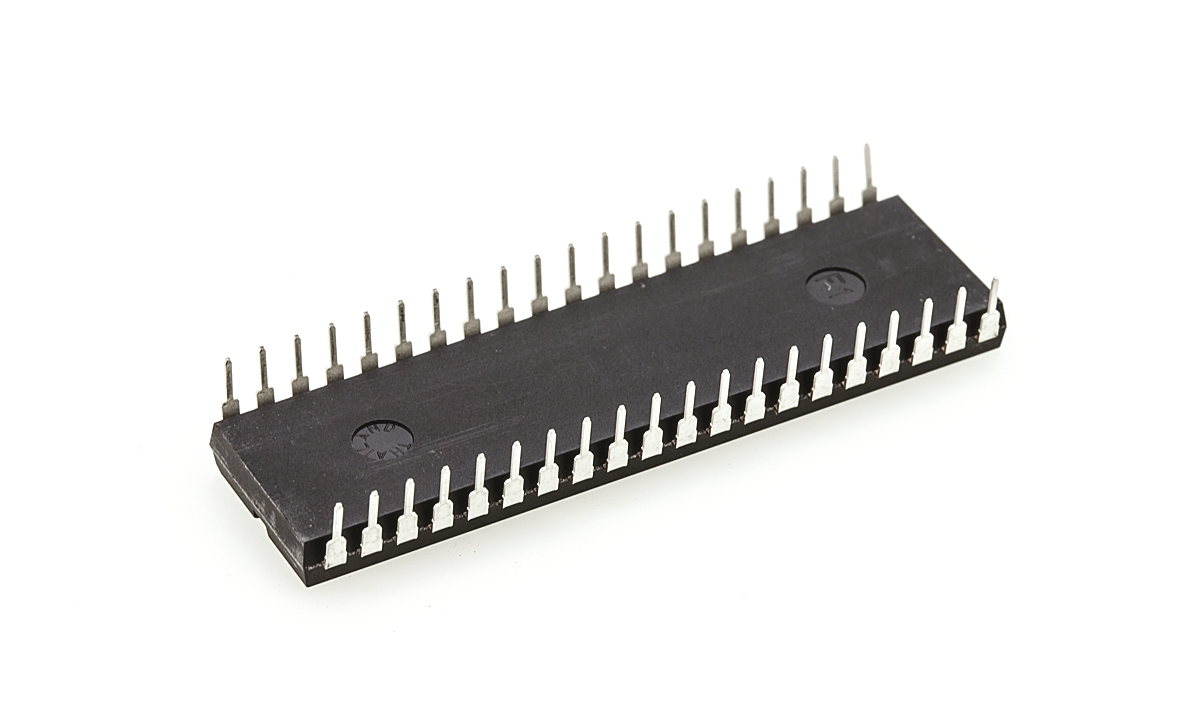

Microchip PIC16F877-04/P, 8bit PIC Microcontroller, 4MHz, 256 x 8 words, 8K x 14 words Flash, 40-Pin PDIP

PIC16F877-04-P Microchip PIC16F877-04/P, 8bit PIC Microcontroller, 4MHz, 256 x 8 words, 8K x 14 words Flash, 40-Pin PDIP
PIC16F877-04/P
Microchip

Product Information

Dimensions:
52.45 x 14.22 x 4.06mm
Number of I2C Channels:
1
Number of USART Channels:
1
USB Channels:
0
Width:
14.22mm
Program Memory Size:
256 x 8 words, 8K x 14 words
Number of PWM Units:
2
RAM Size:
368 B
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
PDIP
Maximum Frequency:
4MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+70 °C
Number of UART Channels:
0
Minimum Operating Temperature:
0 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC16F
Device Core:
PIC
Length:
52.45mm
Number of ADC Units:
1
Pin Count:
40
Pulse Width Modulation:
2 (10 bit) (CCP)
Mounting Type:
Through Hole
Number of Ethernet Channels:
0
Height:
4.06mm
Typical Operating Supply Voltage:
4 → 5.5 V
ADCs:
8 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 4MHz 256 x 8 words 8K x 14 words Flash 40-Pin PDIP manufactured by Microchip. The manufacturer part number is PIC16F877-04/P. The given dimensions of the product include 52.45 x 14.22 x 4.06mm. Moreover, it comprises 1 I2C channels. It contains 1 USART channels. The product integrates 0 USB channels. Furthermore, the product is 14.22mm wide. In addition, 256 x 8 words, 8k x 14 words is the program memory size. Furthermore, it is composed of 2 PWM units. The product has typical 368 b RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of pdip. It features 4mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +70 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is 0 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic16f. On the other hand, the pic is the device core. Its accurate length is 52.45mm. It contains 1 ADC units. It contains 40 pins. The product carries 2 (10 bit) (ccp) of pulse width modulation. The product is available in through hole configuration. It contains 0 dedicated ethernet channels . In addition, the height is 4.06mm. It has 4 → 5.5 v of typical operating supply voltage. The ADCs included 8 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 1 SPI channels.
