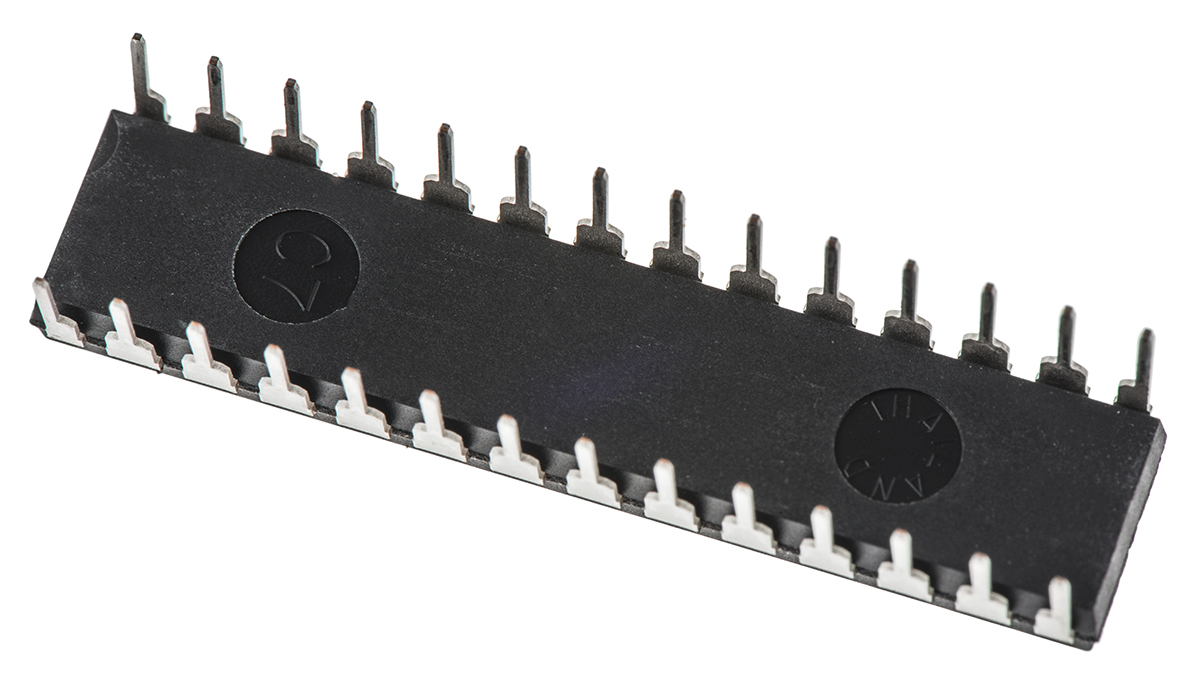

Microchip PIC16F72-I/SP, 8bit PIC Microcontroller, 20MHz, 2K x 14 words Flash, 28-Pin SPDIP

PIC16F72-I-SP Microchip PIC16F72-I/SP, 8bit PIC Microcontroller, 20MHz, 2K x 14 words Flash, 28-Pin SPDIP
PIC16F72-I/SP
Microchip

Product Information

Dimensions:
1.4 x 0.295 x 0.15in
Number of I2C Channels:
1
Number of USART Channels:
0
USB Channels:
0
Width:
0.295in
Program Memory Size:
2K x 14 words
Number of PWM Units:
1 x 10 bit
RAM Size:
128 B
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
SPDIP
Maximum Frequency:
20MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC16F
Device Core:
PIC
Length:
35.56mm
Number of ADC Units:
1
Pin Count:
28
Pulse Width Modulation:
1 (10 bit) (CCP)
Mounting Type:
Through Hole
Number of Ethernet Channels:
0
Height:
3.81mm
Typical Operating Supply Voltage:
4 → 5.5 V
ADCs:
5 x 8 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

The Microchip PIC16F72-I/SP is a cutting-edge 8-bit microcontroller recognised for its versatility and performance capabilities. Conceived for a wide variety of embedded applications, this microcontroller offers a balance of processing power, memory, and I/O capabilities. With a 20MHz clock speed, 2K x 14 words of Flash memory, and a 28-Pin SPDIP package, it is suitable for various electronic projects.

  • Processing Power

The PIC16F72-I/SP is part of Microchip's PIC microcontroller family, renowned for its efficient and reliable operation. It features an 8-bit microcontroller core, providing ample processing power for tasks such as data processing, control, and interfacing with external devices.

Advanced Features and Benefits of the Microcontroller

  • With a maximum clock speed of 20MHz, this microcontroller can execute instructions quickly, making it suitable for applications where real-time processing and response are critical.
  • The high clock speed ensures rapid execution of code, enhancing overall system performance.
  • The PIC16F72-I/SP is equipped with 2K x 14 words of Flash memory.
  • It is ideal for applications that require firmware or software updates, as the Flash memory can be reprogrammed multiple times.
  • The microcontroller comes in a 28-pin SPDIP (Shrink Dual Inline Package) package.
  • The PIC16F72-I/SP features a range of integrated peripherals, including timers, counters, pulse-width modulation (PWM) modules, and analog-to-digital converters (ADCs).
  • Microchip microcontrollers are known for their low power consumption, and the PIC16F72-I/SP is no exception.
  • It features power-saving modes that allow it to operate efficiently in battery-powered or energy-conscious applications, extending battery life.

The Microchip PIC16F72-I/SP, 8bit PIC Microcontroller: Wide Range of Applications:

The versatility of the PIC16F72-I/SP makes it perfect for a wide array of applications across industries, including:

  • Home Automation
  • Industrial Control Systems
  • Consumer Electronics
  • Its flexibility, combined with the robust Microchip development ecosystem, facilitates rapid prototyping and development.

pdf icon
Datasheet(Technical Reference)
