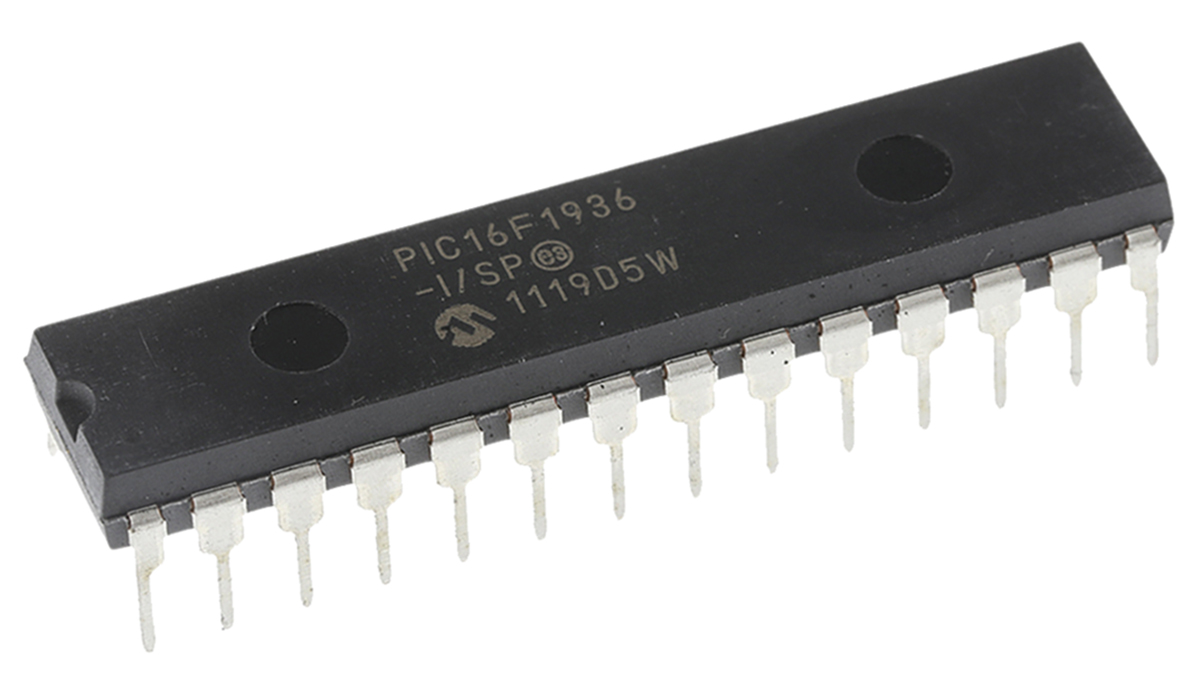

Microchip PIC16F1936-I/SP, 8bit PIC Microcontroller, 32MHz, 256 B, 8192 x 14 words Flash, 28-Pin SPDIP

PIC16F1936-I-SP Microchip PIC16F1936-I/SP, 8bit PIC Microcontroller, 32MHz, 256 B, 8192 x 14 words Flash, 28-Pin SPDIP
PIC16F1936-I/SP
Microchip

Product Information

Dimensions:
1.4 x 0.295 x 0.15in
Number of I2C Channels:
1
Number of USART Channels:
1
USB Channels:
0
Width:
0.295in
Program Memory Size:
256 B, 8192 x 14 words
Number of PWM Units:
5 x 10 bit
RAM Size:
512 B
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
SPDIP
Maximum Frequency:
32MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Family Name:
PIC16F
Device Core:
PIC
Length:
35.56mm
Number of ADC Units:
1
Pin Count:
28
Pulse Width Modulation:
2 (10 bit) (CCP), 3 (10 bit) (ECCP)
Mounting Type:
Through Hole
Number of Ethernet Channels:
0
Height:
3.81mm
Typical Operating Supply Voltage:
1.8 → 5.5 V
ADCs:
11 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 32MHz 256 B 8192 x 14 words Flash 28-Pin SPDIP manufactured by Microchip. The manufacturer part number is PIC16F1936-I/SP. The given dimensions of the product include 1.4 x 0.295 x 0.15in. Moreover, it comprises 1 I2C channels. It contains 1 USART channels. The product integrates 0 USB channels. Furthermore, the product is 0.295in wide. In addition, 256 b, 8192 x 14 words is the program memory size. Furthermore, it is composed of 5 x 10 bit PWM units. The product has typical 512 b RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of spdip. It features 32mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. The product belongs to a family pic16f. On the other hand, the pic is the device core. Its accurate length is 35.56mm. It contains 1 ADC units. It contains 28 pins. The product carries 2 (10 bit) (ccp), 3 (10 bit) (eccp) of pulse width modulation. The product is available in through hole configuration. It contains 0 dedicated ethernet channels . In addition, the height is 3.81mm. It has 1.8 → 5.5 v of typical operating supply voltage. The ADCs included 11 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 1 SPI channels.
