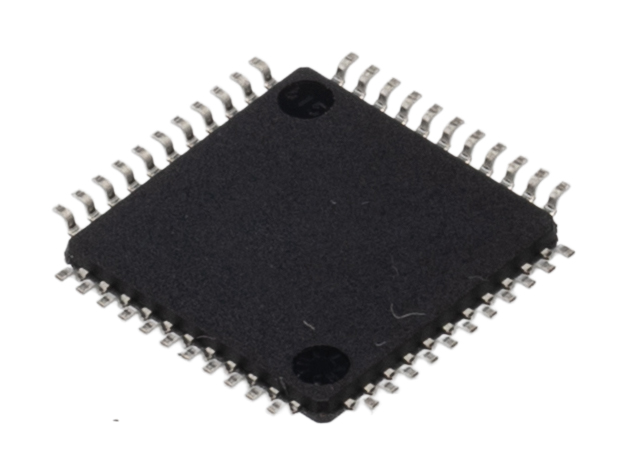

Microchip PIC18F452-I/PT, 8bit PIC Microcontroller, 40MHz, 32 kB Flash, 44-Pin TQFP

PIC18F452-I-PT Microchip PIC18F452-I/PT, 8bit PIC Microcontroller, 40MHz, 32 kB Flash, 44-Pin TQFP
Microchip

Product Information

Dimensions:
10.1 x 10.1 x 1.05mm
Number of I2C Channels:
1
Number of USART Channels:
1
USB Channels:
0
Width:
10.1mm
Program Memory Size:
32 kB
Number of PWM Units:
2 x 10 bit
RAM Size:
1.536 kB
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
TQFP
Maximum Frequency:
40MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Family Name:
PIC18F
Device Core:
PIC
Length:
10.1mm
Number of ADC Units:
1
Pin Count:
44
Pulse Width Modulation:
2 (10 bit) (CCP)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.05mm
Typical Operating Supply Voltage:
4.2 → 5.5 V
ADCs:
8 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 40MHz 32 kB Flash 44-Pin TQFP manufactured by Microchip. The manufacturer part number is PIC18F452-I/PT. The given dimensions of the product include 10.1 x 10.1 x 1.05mm. Moreover, it comprises 1 I2C channels. It contains 1 USART channels. The product integrates 0 USB channels. Furthermore, the product is 10.1mm wide. In addition, 32 kb is the program memory size. Furthermore, it is composed of 2 x 10 bit PWM units. The product has typical 1.536 kb RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of tqfp. It features 40mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. The product belongs to a family pic18f. On the other hand, the pic is the device core. Its accurate length is 10.1mm. It contains 1 ADC units. It contains 44 pins. The product carries 2 (10 bit) (ccp) of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.05mm. It has 4.2 → 5.5 v of typical operating supply voltage. The ADCs included 8 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 1 SPI channels.
