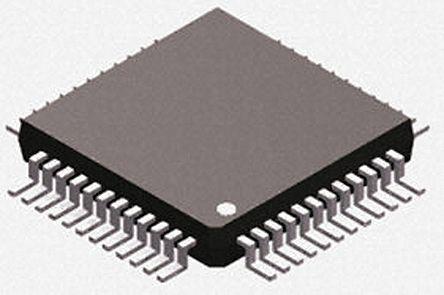

This is 8bit 78K0 Microcontroller 20MHz 60 kB Flash 48-Pin LFQFP manufactured by Renesas Electronics. The manufacturer part number is UPD78F0515AGA(S)-GAM-AX. The given dimensions of the product include 7 x 7 x 1.5mm. Furthermore, the product is 7mm wide. In addition, 60 kb is the program memory size. The product has typical 3072 b RAM size. Additionally, it is composed of 8 ADC channels. It comprises 2 timers. Moreover, the data bus width includes 8bit. The instruction set has cisc architecture. It is a flash program memory type. The package is a sort of lfqfp. It features 20mhz of maximum frequency. It has a maximum operating temperature of +85 °c. The product belongs to a family 78k. On the other hand, the 78k0 is the device core. The ADC has 10bit resolution. The timer has 8 bit, 16 bit resolution. Timers options include 1(1 x 16 bit), 1(4 x 8 bit). It contains 1 ADC units. It contains 48 pins. The product is available in surface mount configuration. Its accurate length is 7mm. In addition, the height is 1.5mm. It has 1.8 → 5.5 v of typical operating supply voltage. The ADCs included 1 (8 x 10 bit). Whereas, the minimum operating temperature of the product is -40 °c.
For more information please check the datasheets.
