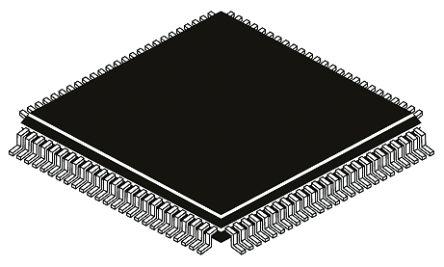

Renesas Electronics UPD70F3350GC(A)-UEU-AX, 32bit V850ES Microcontroller, 32MHz, 512 kB Flash, 100-Pin LQFP

UPD70F3350GC-A--UEU-AX Renesas Electronics UPD70F3350GC(A)-UEU-AX, 32bit V850ES Microcontroller, 32MHz, 512 kB Flash, 100-Pin LQFP
Renesas Electronics

Product Information

Dimensions:
14 x 14 x 1.4mm
Number of I2C Channels:
3
Width:
14mm
Program Memory Size:
512 kB
RAM Size:
40 kB
Automotive Standard:
AEC-Q100
ADC Channels:
12
Number of Timers:
3
Data Bus Width:
32bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
LQFP
Maximum Frequency:
32MHz
Number of LIN Channels:
3
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
3
Minimum Operating Temperature:
-40 °C
Family Name:
V850
Device Core:
V850ES
ADC Resolution:
10bit
Timer Resolution:
16bit
Timers:
1 (1 x 16 bit), 1 (6 x 16 bit)
Number of ADC Units:
1
Pin Count:
100
Mounting Type:
Surface Mount
Length:
14mm
Height:
1.4mm
Typical Operating Supply Voltage:
2.85 → 3.6 V
ADCs:
1 (12 x 10 bit)
Number of CAN Channels:
1
Number of SPI Channels:
5
RoHs Compliant
Checking for live stock

This is 32bit V850ES Microcontroller 32MHz 512 kB Flash 100-Pin LQFP manufactured by Renesas Electronics. The manufacturer part number is UPD70F3350GC(A)-UEU-AX. The given dimensions of the product include 14 x 14 x 1.4mm. Moreover, it comprises 3 I2C channels. Furthermore, the product is 14mm wide. In addition, 512 kb is the program memory size. The product has typical 40 kb RAM size. The product complies with automotive standard - aec-q100. Additionally, it is composed of 12 ADC channels. It comprises 3 timers. Moreover, the data bus width includes 32bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of lqfp. It features 32mhz of maximum frequency. It includes 3 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 3 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. The product belongs to a family v850. On the other hand, the v850es is the device core. The ADC has 10bit resolution. The timer has 16bit resolution. Timers options include 1 (1 x 16 bit), 1 (6 x 16 bit). It contains 1 ADC units. It contains 100 pins. The product is available in surface mount configuration. Its accurate length is 14mm. In addition, the height is 1.4mm. It has 2.85 → 3.6 v of typical operating supply voltage. The ADCs included 1 (12 x 10 bit). Moreover, it consists of 1 CAN channels. Furthermore, it is composed of 5 SPI channels.

pdf icon
V850ES/SG3, Renesas MCU(Technical Reference)
