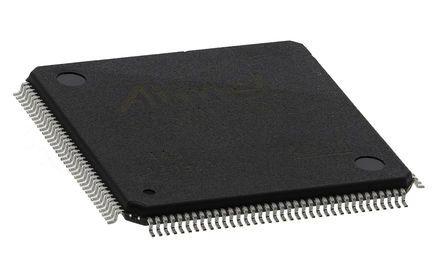

This is 32bit RX CPU Microcontroller 100MHz 512 kB Flash ROM 144-Pin LQFP manufactured by Renesas Electronics. The manufacturer part number is R5F563TEEDFB#V0. The given dimensions of the product include 20.1 x 20.1 x 1.55mm. The product integrates 1 x host USB channels. Furthermore, the product is 20.1mm wide. In addition, 512 kb is the program memory size. The product has typical 48 kb RAM size. Additionally, it is composed of 20 ADC channels. It comprises 20 timers. Moreover, the data bus width includes 32bit. The instruction set has cisc harvard architecture. It is a flash, rom program memory type. The package is a sort of lqfp. It features 100mhz of maximum frequency. It has a maximum operating temperature of +85 °c. The product belongs to a family rx. On the other hand, the rx cpu is the device core. The ADC has 10 bit, 12 bit resolution. The timer has 16bit resolution. Timers options include 20 (19 x 16 bit). It contains 2 ADC units. It contains 144 pins. The product is available in surface mount configuration. Its accurate length is 20.1mm. In addition, the height is 1.55mm. It has 3.3 v, 5 v of typical operating supply voltage. The ADCs included 1 (20 x 10 bit), 1 (8 x 12 bit). Whereas, the minimum operating temperature of the product is -40 °c.
For more information please check the datasheets.
