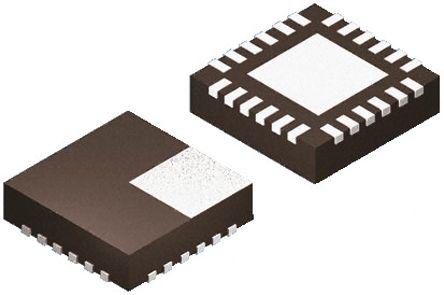

This is 16bit RL78 Microcontroller 24MHz 16 kB 2 kB Flash 24-Pin HWQFN manufactured by Renesas Electronics. The manufacturer part number is R5F1027ADNA#U5. The given dimensions of the product include 4 x 4 x 0.75mm. Moreover, it comprises 2 I2C channels. Furthermore, the product is 4mm wide. In addition, 2 kb, 16 kb is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 1.5 kb RAM size. Additionally, it is composed of 11 ADC channels. It comprises 2 timers. Moreover, the data bus width includes 16bit. The instruction set has cisc architecture. It is a flash program memory type. The package is a sort of hwqfn. It features 24mhz of maximum frequency. It has a maximum operating temperature of +85 °c. It is also composed of 1 UART channels. Moreover, the product is created with 8bit PMW resolution . The product belongs to a family rl78. On the other hand, the rl78 is the device core. The ADC has 8 bit, 10 bit resolution. The timer has 8 bit, 16 bit resolution. Timers options include 4 x 16 bit, 4 x 8 bit. It contains 1 ADC units. It contains 24 pins. The product carries 1 (3 x 8 bit) of pulse width modulation. The product is available in surface mount configuration. It includes 3 PWM channels . Its accurate length is 4mm. In addition, the height is 0.75mm. It has 1.8 → 5.5 v of typical operating supply voltage. The ADCs included 1 (11 x 8bit/11 x 10bit). Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it is composed of 2 SPI channels.
For more information please check the datasheets.
