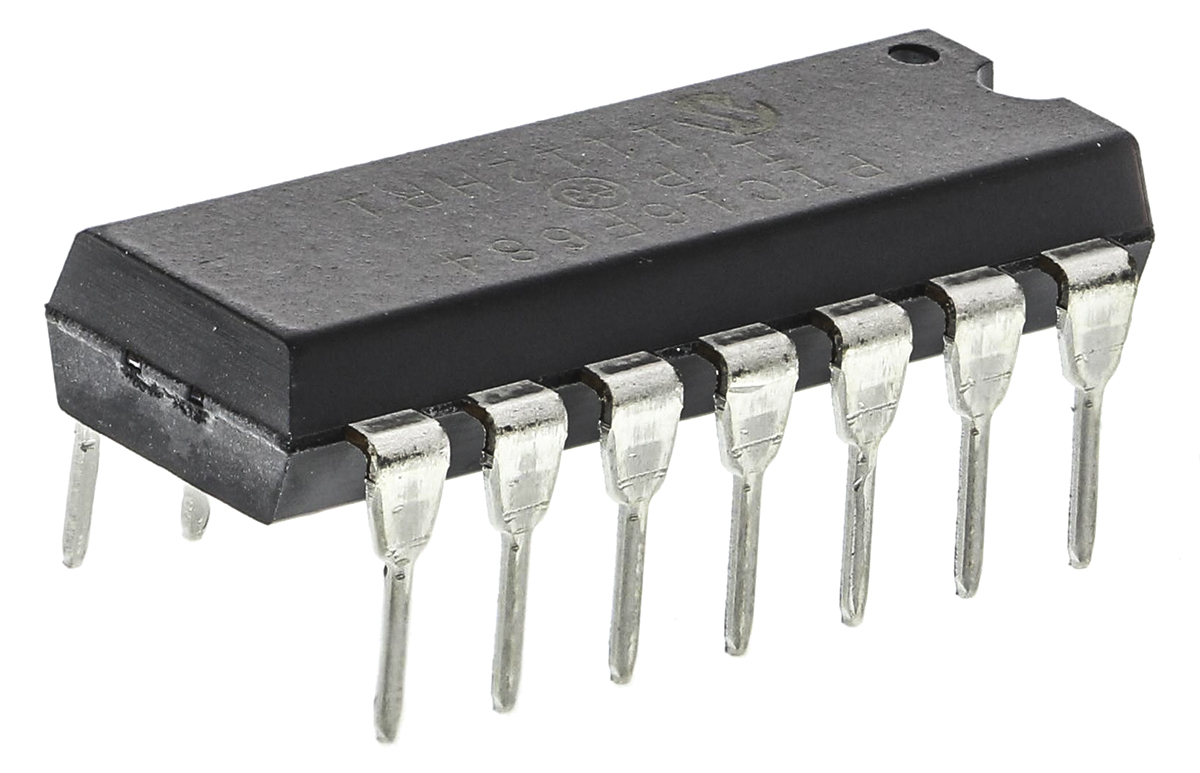

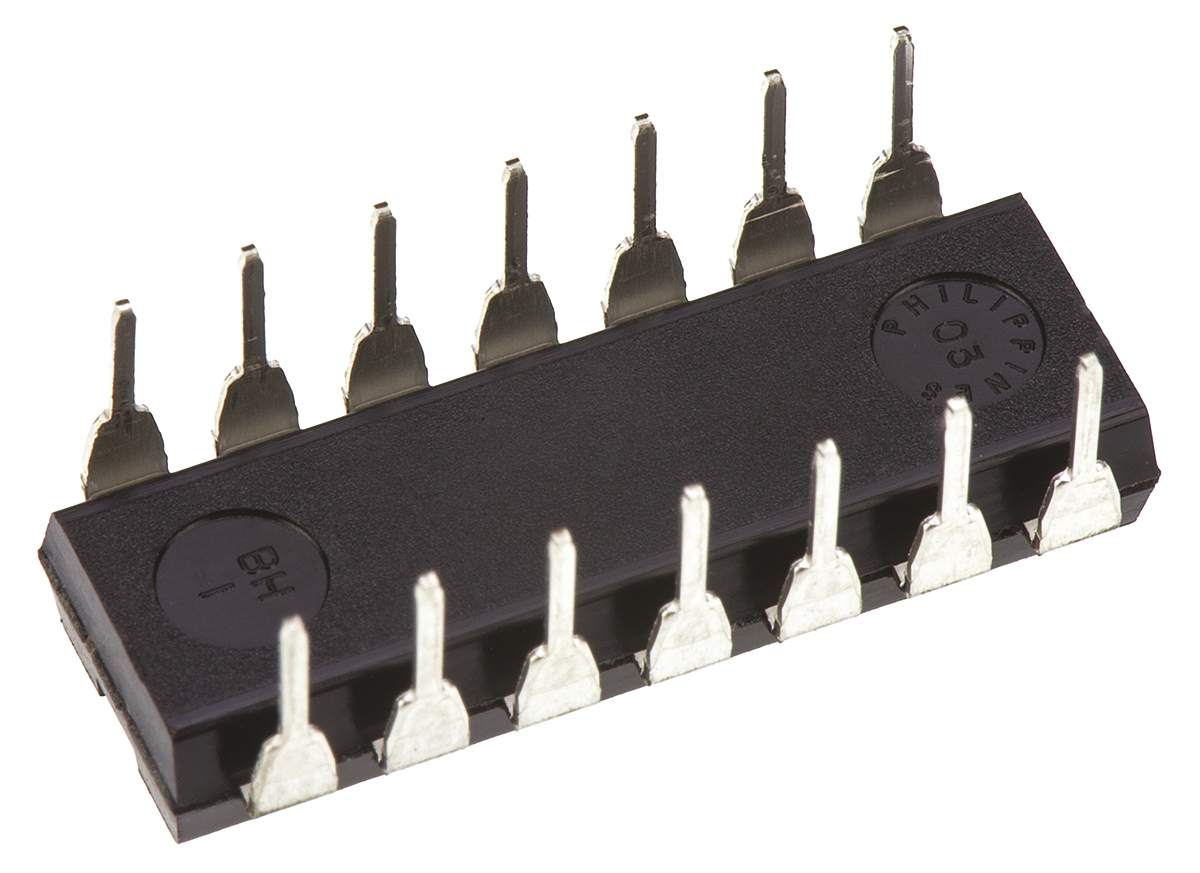

Microchip PIC16F684-I/P, 8bit PIC Microcontroller, 20MHz, 256 B, 2048 x 14 words Flash, 14-Pin PDIP

PIC16F684-I-P Microchip PIC16F684-I/P, 8bit PIC Microcontroller, 20MHz, 256 B, 2048 x 14 words Flash, 14-Pin PDIP
PIC16F684-I/P
Microchip

Product Information

Dimensions:
0.775 x 0.28 x 0.195in
Number of I2C Channels:
1
Number of USART Channels:
0
USB Channels:
0
Width:
0.28in
Program Memory Size:
256 B, 2048 x 14 words
RAM Size:
128 B
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
PDIP
Maximum Frequency:
20MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Family Name:
PIC16F
Device Core:
PIC
Length:
19.69mm
Number of ADC Units:
1
Pin Count:
14
Mounting Type:
Through Hole
Number of Ethernet Channels:
0
Height:
4.95mm
Typical Operating Supply Voltage:
2 → 5.5 V
ADCs:
8 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 20MHz 256 B 2048 x 14 words Flash 14-Pin PDIP manufactured by Microchip. The manufacturer part number is PIC16F684-I/P. The given dimensions of the product include 0.775 x 0.28 x 0.195in. Moreover, it comprises 1 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 0.28in wide. In addition, 256 b, 2048 x 14 words is the program memory size. The product has typical 128 b RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of pdip. It features 20mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. The product belongs to a family pic16f. On the other hand, the pic is the device core. Its accurate length is 19.69mm. It contains 1 ADC units. It contains 14 pins. The product is available in through hole configuration. It contains 0 dedicated ethernet channels . In addition, the height is 4.95mm. It has 2 → 5.5 v of typical operating supply voltage. The ADCs included 8 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 1 SPI channels.
