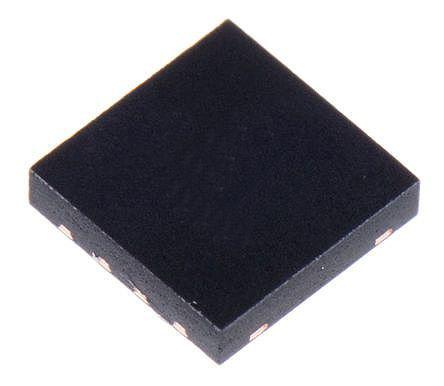

Microchip PIC12F1840-I/MF, 8bit PIC Microcontroller, 32MHz, 7 kB Flash, 8-Pin DFN

PIC12F1840-I-MF Microchip PIC12F1840-I/MF, 8bit PIC Microcontroller, 32MHz, 7 kB Flash, 8-Pin DFN
Microchip

Product Information

Dimensions:
3 x 3 x 1mm
Number of I2C Channels:
1
Number of USART Channels:
1
Width:
3mm
Program Memory Size:
7 kB
Number of PWM Units:
1
RAM Size:
256 B
ADC Channels:
4
Number of Timers:
2
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
DFN
Maximum Frequency:
32MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC12F
Device Core:
PIC
ADC Resolution:
10bit
Timer Resolution:
8bit
Timers:
2 x 8 bit
Number of ADC Units:
1
Pin Count:
8
Pulse Width Modulation:
1 (1 Channel)
Mounting Type:
Surface Mount
PWM Channels:
1
Length:
3mm
Number of Ethernet Channels:
0
Height:
1mm
Typical Operating Supply Voltage:
2.3 → 5.5 V
ADCs:
4 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 32MHz 7 kB Flash 8-Pin DFN manufactured by Microchip. The manufacturer part number is PIC12F1840-I/MF. The given dimensions of the product include 3 x 3 x 1mm. Moreover, it comprises 1 I2C channels. It contains 1 USART channels. Furthermore, the product is 3mm wide. In addition, 7 kb is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 256 b RAM size. Additionally, it is composed of 4 ADC channels. It comprises 2 timers. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of dfn. It features 32mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic12f. On the other hand, the pic is the device core. The ADC has 10bit resolution. The timer has 8bit resolution. Timers options include 2 x 8 bit. It contains 1 ADC units. It contains 8 pins. The product carries 1 (1 channel) of pulse width modulation. The product is available in surface mount configuration. It includes 1 PWM channels . Its accurate length is 3mm. It contains 0 dedicated ethernet channels . In addition, the height is 1mm. It has 2.3 → 5.5 v of typical operating supply voltage. The ADCs included 4 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 1 SPI channels.

pdf icon
PIC12(L)F1840 8-Pin Flash Microcontrollers with XLP Technology Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
