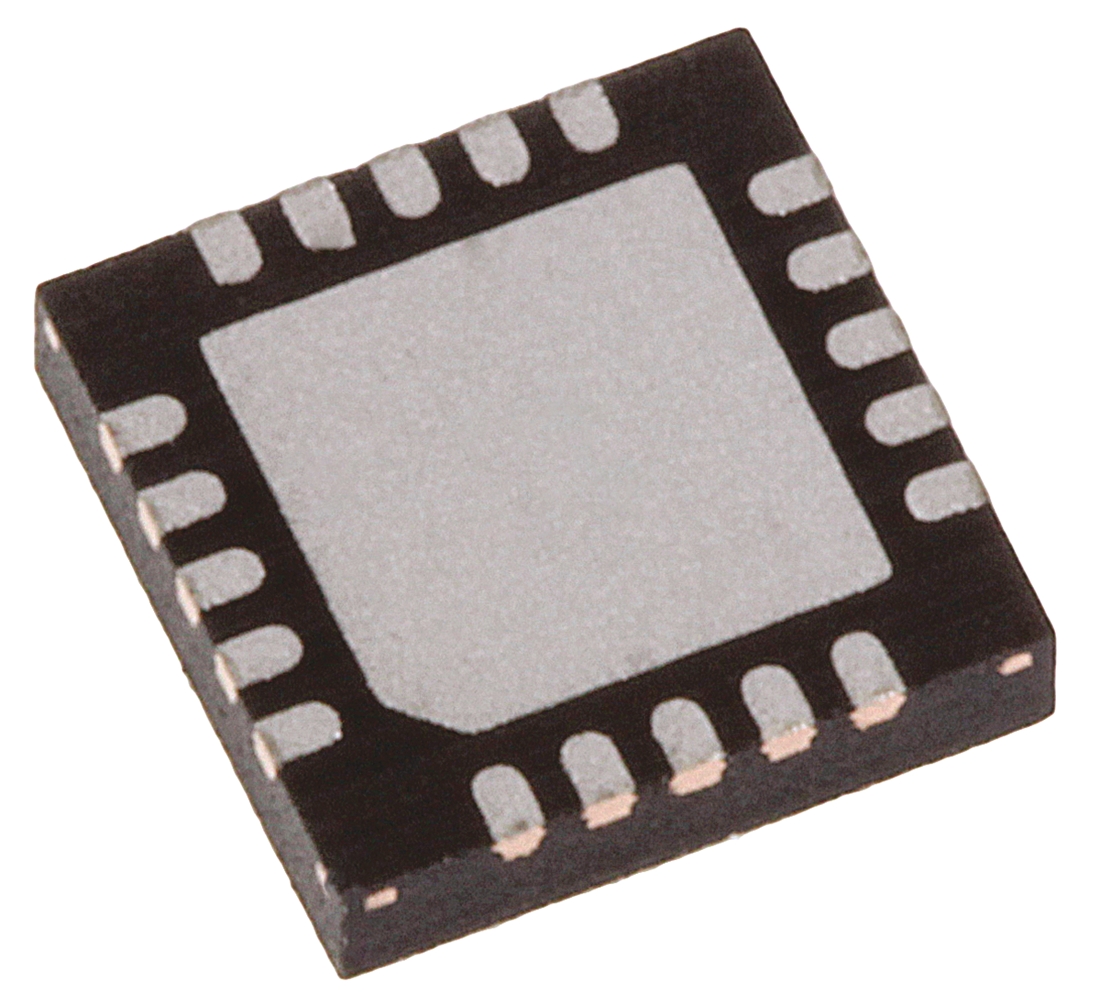

Microchip PIC16F690-I/ML, 8bit PIC Microcontroller, 20MHz, 4096 x 14 words, 256 B Flash, 20-Pin QFN

PIC16F690-I-ML Microchip PIC16F690-I/ML, 8bit PIC Microcontroller, 20MHz, 4096 x 14 words, 256 B Flash, 20-Pin QFN
PIC16F690-I/ML
Microchip

Product Information

Dimensions:
4 x 4 x 0.95mm
Number of I2C Channels:
1
Number of USART Channels:
1
USB Channels:
0
Width:
4mm
Program Memory Size:
256 B, 4096 x 14 words
RAM Size:
256 B
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
QFN
Maximum Frequency:
20MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Family Name:
PIC16F
Device Core:
PIC
Length:
4mm
Number of ADC Units:
1
Pin Count:
20
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
0.95mm
Typical Operating Supply Voltage:
2 → 5.5 V
ADCs:
12 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 20MHz 4096 x 14 words 256 B Flash 20-Pin QFN manufactured by Microchip. The manufacturer part number is PIC16F690-I/ML. The given dimensions of the product include 4 x 4 x 0.95mm. Moreover, it comprises 1 I2C channels. It contains 1 USART channels. The product integrates 0 USB channels. Furthermore, the product is 4mm wide. In addition, 256 b, 4096 x 14 words is the program memory size. The product has typical 256 b RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of qfn. It features 20mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. The product belongs to a family pic16f. On the other hand, the pic is the device core. Its accurate length is 4mm. It contains 1 ADC units. It contains 20 pins. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 0.95mm. It has 2 → 5.5 v of typical operating supply voltage. The ADCs included 12 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 1 SPI channels.
