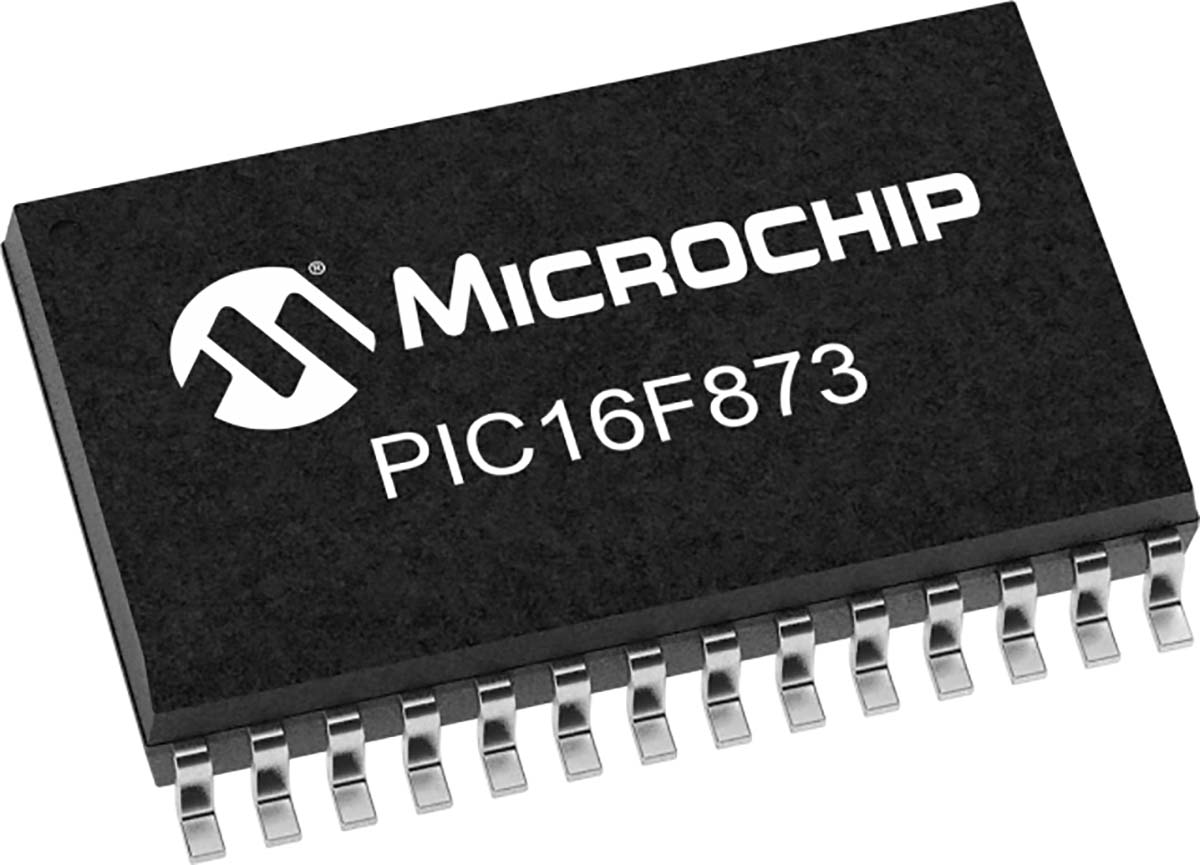

Microchip PIC16F873-20I/SP, 8bit PIC16F Microcontroller, 20MHz, 7 kB Flash, 28-Pin PDIP

PIC16F873-20I-SP Microchip PIC16F873-20I/SP, 8bit PIC16F Microcontroller, 20MHz, 7 kB Flash, 28-Pin PDIP
PIC16F873-20I/SP
Microchip

Product Information

Dimensions:
35.18 x 7.49 x 3.43mm
Number of I2C Channels:
1
Number of USART Channels:
1
USB Channels:
0
Width:
7.49mm
Program Memory Size:
7 kB
Number of PWM Units:
2
RAM Size:
192 B
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
PDIP
Maximum Frequency:
20MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC16F
Device Core:
PIC
Length:
35.18mm
Number of ADC Units:
1
Pin Count:
28
Pulse Width Modulation:
2 (10 bit) (CCP)
Mounting Type:
Through Hole
Number of Ethernet Channels:
0
Height:
3.43mm
Typical Operating Supply Voltage:
2 → 5.5 V
ADCs:
5 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC16F Microcontroller 20MHz 7 kB Flash 28-Pin PDIP manufactured by Microchip. The manufacturer part number is PIC16F873-20I/SP. The given dimensions of the product include 35.18 x 7.49 x 3.43mm. Moreover, it comprises 1 I2C channels. It contains 1 USART channels. The product integrates 0 USB channels. Furthermore, the product is 7.49mm wide. In addition, 7 kb is the program memory size. Furthermore, it is composed of 2 PWM units. The product has typical 192 b RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of pdip. It features 20mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic16f. On the other hand, the pic is the device core. Its accurate length is 35.18mm. It contains 1 ADC units. It contains 28 pins. The product carries 2 (10 bit) (ccp) of pulse width modulation. The product is available in through hole configuration. It contains 0 dedicated ethernet channels . In addition, the height is 3.43mm. It has 2 → 5.5 v of typical operating supply voltage. The ADCs included 5 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 1 SPI channels.

pdf icon
Datasheet - PIC16F873(Technical Reference)
