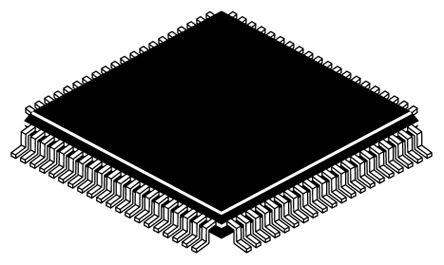

Renesas Electronics DF71464AD80FPV, 32bit SH-2 Microcontroller, 80MHz, 256 kB Flash, 80-Pin LQFP

DF71464AD80FPV Renesas Electronics , 32bit SH-2 Microcontroller, 80MHz, 256 kB Flash, 80-Pin LQFP
Renesas Electronics

Product Information

Dimensions:
14.1 x 14.1 x 1.55mm
Width:
14.1mm
Program Memory Size:
256 kB
RAM Size:
8 kB
ADC Channels:
12
Number of Timers:
3
Data Bus Width:
32bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
LQFP
Maximum Frequency:
80MHz
Maximum Operating Temperature:
85 °C
Family Name:
SuperH
Device Core:
SH-2
ADC Resolution:
10bit
Timer Resolution:
16bit
Timers:
3 (11 x 16 bit)
Number of ADC Units:
1
Pin Count:
80
Mounting Type:
Surface Mount
Length:
14.1mm
Height:
1.55mm
Typical Operating Supply Voltage:
5 V
ADCs:
1 (12 x 10 bit)
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is 32bit SH-2 Microcontroller 80MHz 256 kB Flash 80-Pin LQFP manufactured by Renesas Electronics. The manufacturer part number is DF71464AD80FPV. The given dimensions of the product include 14.1 x 14.1 x 1.55mm. Furthermore, the product is 14.1mm wide. In addition, 256 kb is the program memory size. The product has typical 8 kb RAM size. Additionally, it is composed of 12 ADC channels. It comprises 3 timers. Moreover, the data bus width includes 32bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of lqfp. It features 80mhz of maximum frequency. It has a maximum operating temperature of 85 °c. The product belongs to a family superh. On the other hand, the sh-2 is the device core. The ADC has 10bit resolution. The timer has 16bit resolution. Timers options include 3 (11 x 16 bit). It contains 1 ADC units. It contains 80 pins. The product is available in surface mount configuration. Its accurate length is 14.1mm. In addition, the height is 1.55mm. It has 5 v of typical operating supply voltage. The ADCs included 1 (12 x 10 bit). Whereas, the minimum operating temperature of the product is -40 °c.
