Dimensions:
24.1 x 24.1 x 1.45mm
Number of I2C Channels:
3
Number of USART Channels:
4
USB Channels:
1 x OTG
Width:
24.1mm
Program Memory Size:
1.024 MB
Number of PWM Units:
1 x 16 bit
RAM Size:
128 + 4 kB
Data Bus Width:
32bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash

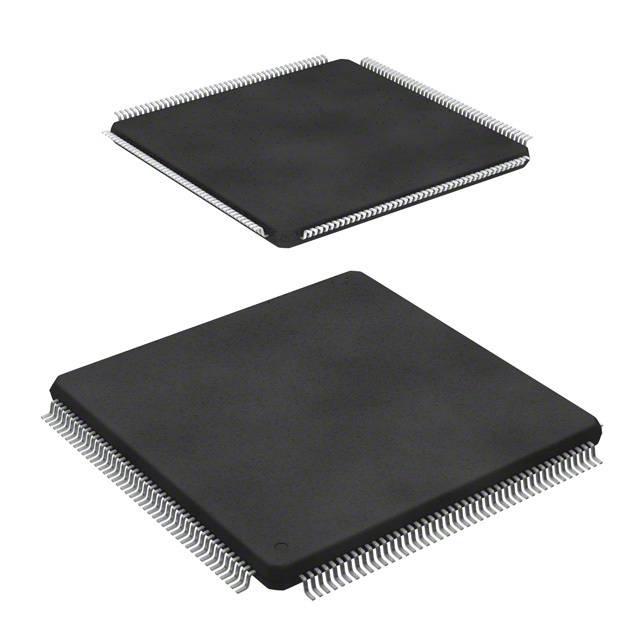

Package Type:
LQFP
Maximum Frequency:
120MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+105 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
1
Family Name:
STM32F2
Device Core:
ARM Cortex M3
Length:
24.1mm
Number of ADC Units:
3
Pin Count:
176
Pulse Width Modulation:
1 (6 x 16 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
1
Height:
1.45mm
Typical Operating Supply Voltage:
1.8 → 3.6 V
ADCs:
24 x 12 bit
Number of CAN Channels:
2
Number of SPI Channels:
3
Manufacturer Standard Lead Time:
18 Weeks
Package / Case:
176-LQFP
Peripherals:
Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Operating Temperature:
-40°C ~ 105°C (TA)
Voltage - Supply (Vcc/Vdd):
1.8 V ~ 3.6 V
Program Memory Size:
1MB (1M x 8)
RAM Size:
132K x 8
Packaging:
Tray
Program Memory Type:
FLASH
Connectivity:
CAN, Ethernet, I²C, IrDA, LIN, Memory Card, SPI, UART/USART, USB OTG
Standard Package:
40
Manufacturer:
STMicroelectronics
Oscillator Type:
Internal
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Number of I/O:
140
Core Size:
32-Bit
Series:
STM32 F2
Supplier Device Package:
176-LQFP (24x24)
Data Converters:
A/D 24x12b, D/A 2x12b
Core Processor:
ARM® Cortex®-M3
Speed:
120MHz
