Single RS-485/RS-422 Transceiver

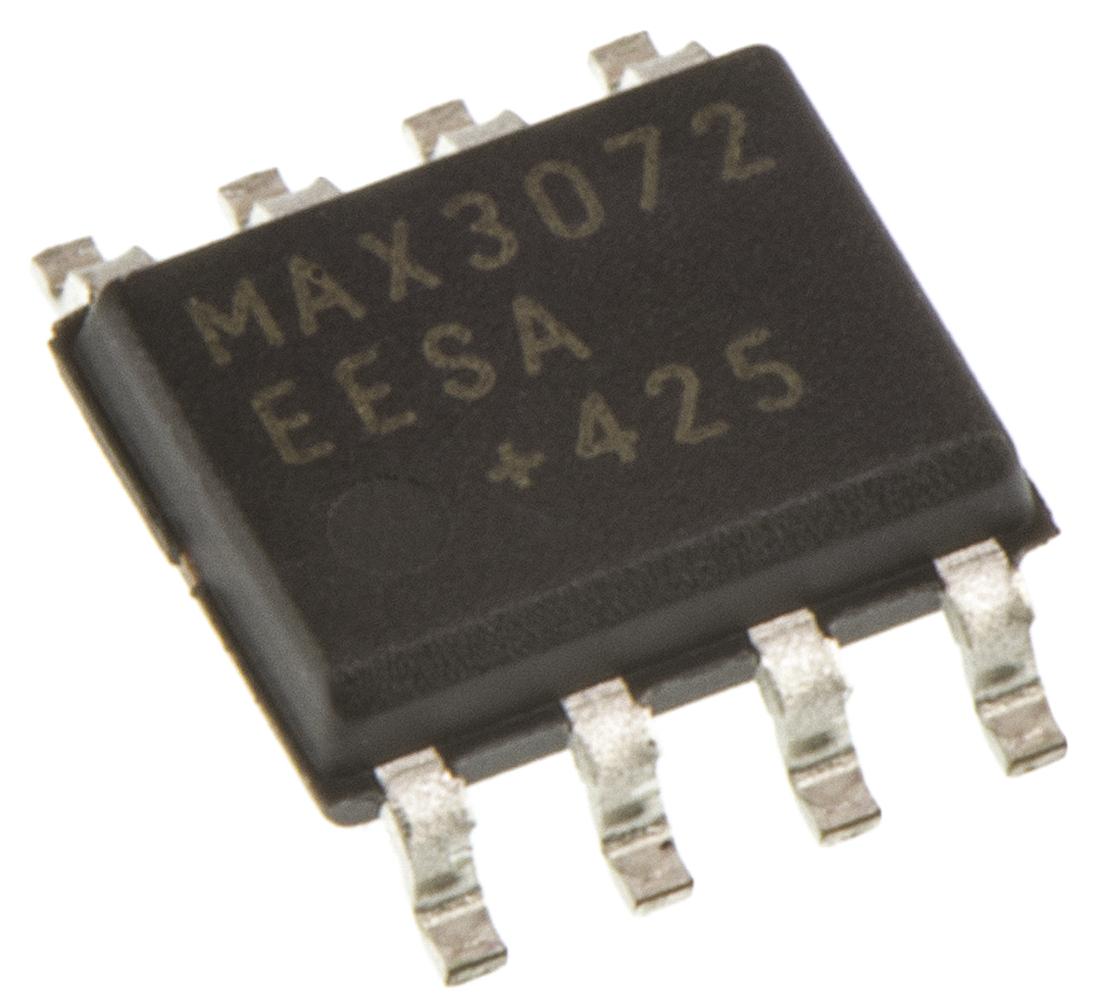

MAX3072EESA- Single RS-485/RS-422 Transceiver
MAX3072EESA+
Maxim Integrated

Product Information

Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Package Type:
SOIC
Input Type:
Differential
IC Type:
Cable Transceiver
Number of Transmitters:
1
Pin Count:
8
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Duplex:
Half
Number of Drivers/Receivers:
1/1
Receiver Hysteresis:
100 mV
Operating Temperature:
-40°C ~ 85°C
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Type:
Transceiver
REACH Status:
REACH Unaffected
Data Rate:
250kbps
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
45 Weeks
Protocol:
RS422, RS485
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-SOIC
Voltage - Supply:
3V ~ 3.6V
Base Product Number:
MAX3072
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Single RS-485/RS-422 Transceiver manufactured by Maxim Integrated. The manufacturer part number is MAX3072EESA+. The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. The package is a sort of soic. It carries differential input type. Additionally, it includes cable transceiver type IC . It includes 1 transmitters . It contains 8 pins. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. Regarding duplex options, it is half. It also includes 1/1. Features 100 mv of receiver hysteresis. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 8-soic (0.154", 3.90mm width). It comes in transceiver configuration. In addition, it is reach unaffected. It has a maximised data speed rate of 250kbps. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 45 weeks standard lead time. The product features a rs422, rs485 protocol. 8-soic is the supplier device package value. It has optimum voltage supply of 3v ~ 3.6v. Moreover, it corresponds to max3072, a base product number of the product. The product is designated with the ear99 code number.
