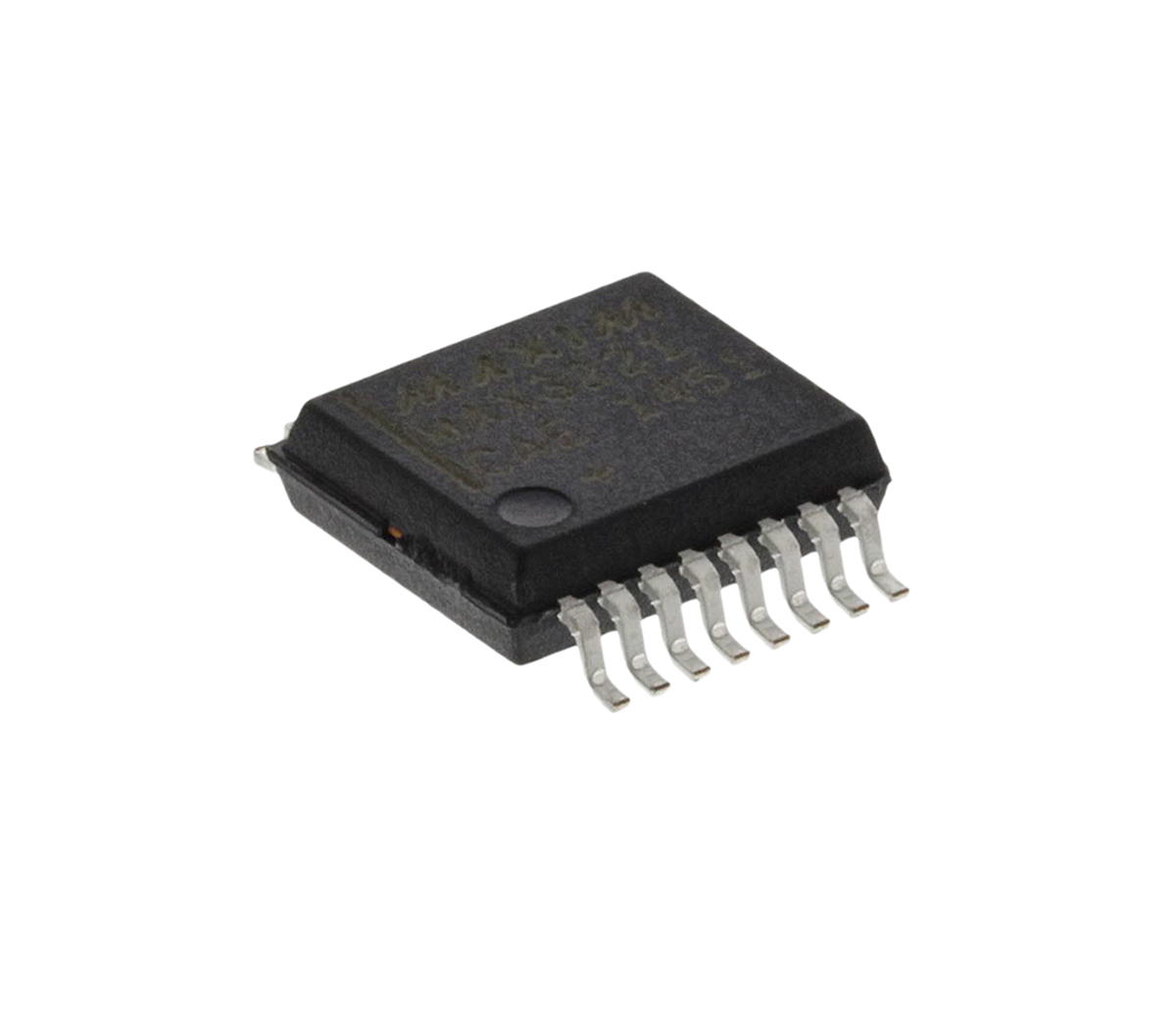

Maxim MAX3221CAE+, Line Transceiver, 3.3 V, 5 V, 16-Pin SSOP

Enrgtech Part No: ET18612695
|
Manufacturer Part No:
MAX3221CAE+
|
Manufacturer: Maxim Integrated

MAX3221CAE- Maxim MAX3221CAE+, Line Transceiver, 3.3 V, 5 V, 16-Pin SSOP

Product Information

Dimensions:

6.33 x 5.38 x 1.78mm

Mounting Type:

Surface Mount

Package Type:

SSOP

Input Type:

Single Ended

Number of Transmitters:

Pin Count:

HTSUS:

8542.39.0001

RoHS Status:

ROHS3 Compliant

Duplex:

Full

Number of Drivers/Receivers:

1/1

Receiver Hysteresis:

300 mV

Operating Temperature:

0°C ~ 70°C

Checking for live stock

This is Maxim Line Transceiver 3.3 V 5 V 16-Pin SSOP manufactured by Maxim Integrated. The manufacturer part number is MAX3221CAE+. The given dimensions of the product include 6.33 x 5.38 x 1.78mm. The product is available in surface mount configuration. The package is a sort of ssop. It carries single ended input type. It includes 1 transmitters . It contains 16 pins. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. Regarding duplex options, it is full. It also includes 1/1. Features 300 mv of receiver hysteresis. The product has 0°c ~ 70°c operating temperature range. Moreover, the product comes in 16-ssop (0.209", 5.30mm width). It comes in transceiver configuration. In addition, it is reach unaffected. It has a maximised data speed rate of 235kbps. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 26 weeks standard lead time. The product features a rs232 protocol. 16-ssop is the supplier device package value. It has optimum voltage supply of 3v ~ 5.5v. Moreover, it corresponds to max3221, a base product number of the product. The product is designated with the ear99 code number.

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Maxim Integrated RoHS3 Cert(Environmental Information)

Red Phosphorous Certificate(Environmental Information)

Maxim Integrated REACH211(Environmental Information)

Part Numbering System(Part Numbering Guide)

MAX3221,23,43(Datasheets)

The Evolution of the RS-232 Transceiver(Mfg Application Notes)

RS-232 Features Explained(Mfg Application Notes)

Determining Clock Accuracy Requirements for UART Communications(Mfg Application Notes)

Multiplexer Enables Pseudomultidrop RS-232 Transmission(Mfg Application Notes)
