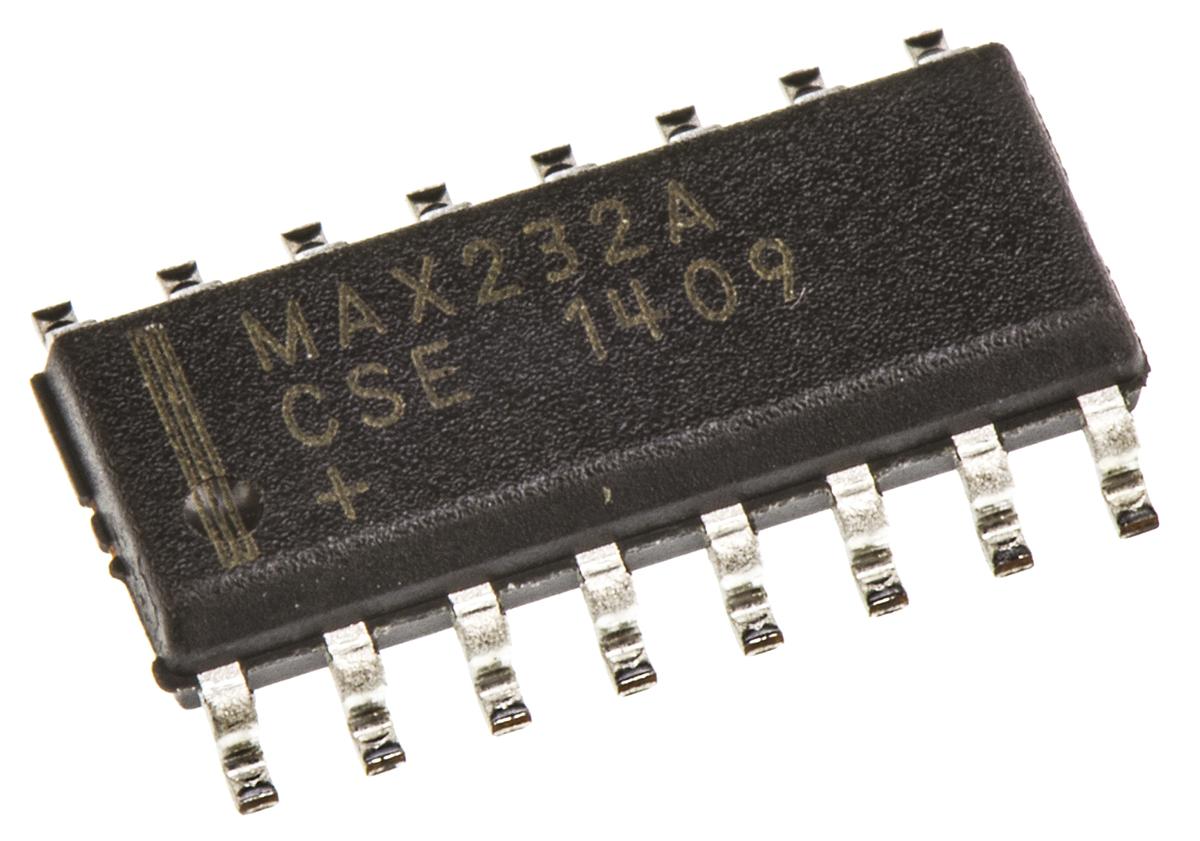

Maxim MAX232ACSE+, Line Transceiver, EIA/TIA-232-E/ RS-232/ V.24/ V.28 2-TX 2-RX, 5 V, 16-Pin SOIC

Enrgtech Part No: ET18612692
|
Manufacturer Part No:
MAX232ACSE+
|
Manufacturer: Maxim Integrated

MAX232ACSE- Maxim MAX232ACSE+, Line Transceiver, EIA/TIA-232-E/ RS-232/ V.24/ V.28 2-TX 2-RX, 5 V, 16-Pin SOIC

Product Information

Dimensions:

10 x 4 x 1.5mm

Mounting Type:

Surface Mount

Package Type:

SOIC

Input Type:

Single Ended

IC Type:

Line Transceiver IC

Number of Transmitters:

Pin Count:

HTSUS:

8542.39.0001

RoHS Status:

ROHS3 Compliant

Duplex:

Full

Number of Drivers/Receivers:

2/2

Receiver Hysteresis:

500 mV

Checking for live stock

This is Maxim Line Transceiver EIA/TIA-232-E/ RS-232/ V.24/ V.28 2-TX 2-RX 5 V 16-Pin SOIC manufactured by Maxim Integrated. The manufacturer part number is MAX232ACSE+. The given dimensions of the product include 10 x 4 x 1.5mm. The product is available in surface mount configuration. The package is a sort of soic. It carries single ended input type. Additionally, it includes line transceiver ic type IC . It includes 2 transmitters . It contains 16 pins. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. Regarding duplex options, it is full. It also includes 2/2. Features 500 mv of receiver hysteresis. The product has 0°c ~ 70°c operating temperature range. Moreover, the product comes in 16-soic (0.154", 3.90mm width). It comes in transceiver configuration. In addition, it is reach unaffected. It has a maximised data speed rate of 200kbps. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 19 weeks standard lead time. The product features a rs232 protocol. 16-soic is the supplier device package value. It has optimum voltage supply of 4.5v ~ 5.5v. Moreover, it corresponds to max232, a base product number of the product. The product is designated with the ear99 code number.

Buck-Boost Regulating Charge Pump 100mA(Technical Reference)

Maxim Integrated RoHS3 Cert(Environmental Information)

Red Phosphorous Certificate(Environmental Information)

Maxim Integrated REACH211(Environmental Information)

Part Numbering System(Part Numbering Guide)

MAX220-49 Datasheet(Datasheets)

Redundant-Transceiver RS-232 Link Has ±40V Overvoltage Protection(Mfg Application Notes)

IrDA and RS-232: A Match Made in Silicon(Mfg Application Notes)

The Evolution of the RS-232 Transceiver(Mfg Application Notes)

Determining Clock Accuracy Requirements for UART Communications(Mfg Application Notes)
