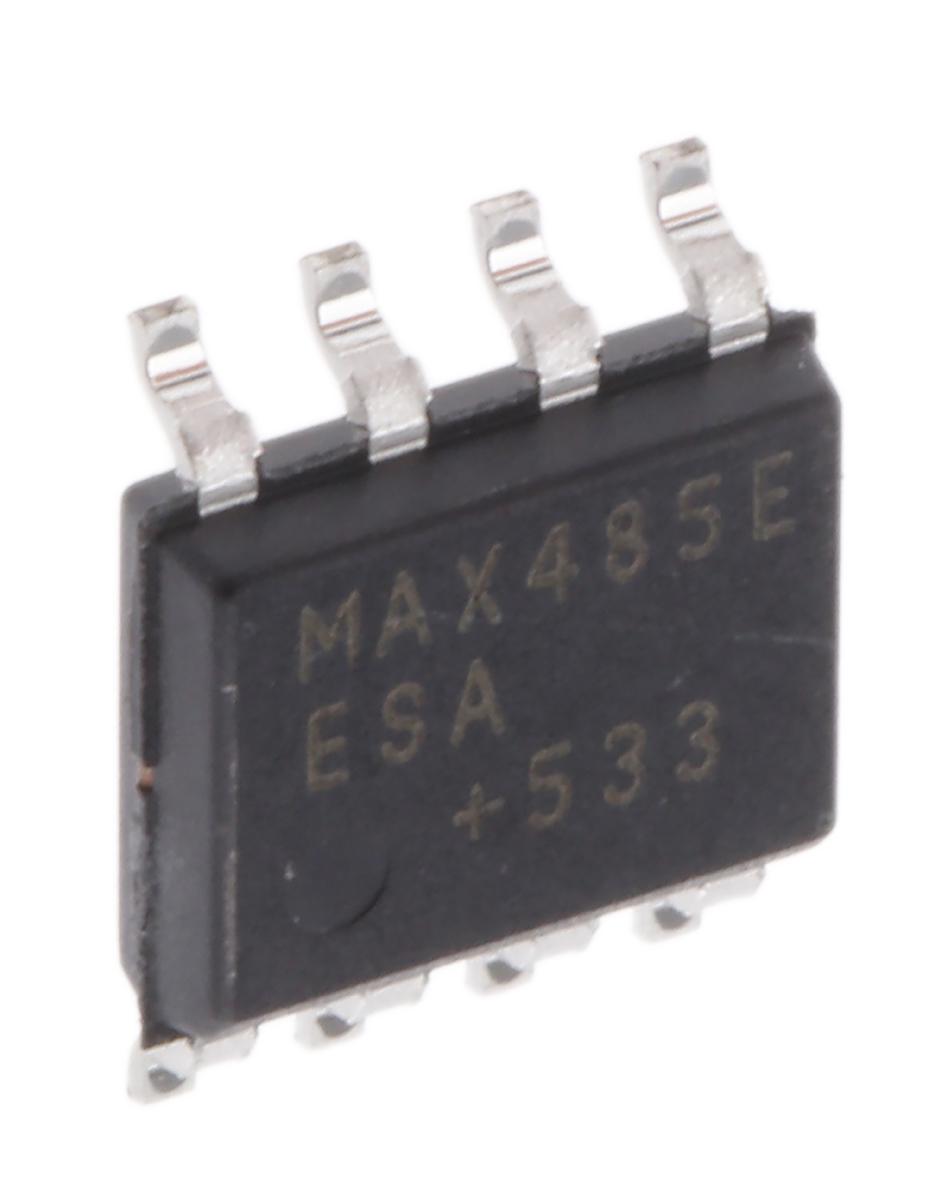

Maxim MAX485EESA+, Line Transceiver, RS-422, RS-485, 4.75 → 5.25 V, 8-Pin SOIC

Enrgtech Part No: ET18612530
|
Manufacturer Part No:
MAX485EESA+
|
Manufacturer: Maxim Integrated

MAX485EESA- Maxim MAX485EESA+, Line Transceiver, RS-422, RS-485, 4.75 → 5.25 V, 8-Pin SOIC

Product Information

Dimensions:

5 x 4 x 1.5mm

Mounting Type:

Surface Mount

Package Type:

SOIC

Input Type:

Differential

IC Type:

Line Transceiver

Number of Transmitters:

Pin Count:

HTSUS:

8542.39.0001

RoHS Status:

ROHS3 Compliant

Duplex:

Half

Number of Drivers/Receivers:

1/1

Receiver Hysteresis:

70 mV

Checking for live stock

This is Maxim Line Transceiver RS-422 RS-485 4.75 → 5.25 V 8-Pin SOIC manufactured by Maxim Integrated. The manufacturer part number is MAX485EESA+. The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. The package is a sort of soic. It carries differential input type. Additionally, it includes line transceiver type IC . It includes 1 transmitters . It contains 8 pins. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. Regarding duplex options, it is half. It also includes 1/1. Features 70 mv of receiver hysteresis. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 8-soic (0.154", 3.90mm width). It comes in transceiver configuration. In addition, it is reach unaffected. It has a maximised data speed rate of 2.5mbps. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 42 weeks standard lead time. The product features a rs422, rs485 protocol. 8-soic is the supplier device package value. It has optimum voltage supply of 4.75v ~ 5.25v. Moreover, it corresponds to max485, a base product number of the product. The product is designated with the ear99 code number.
