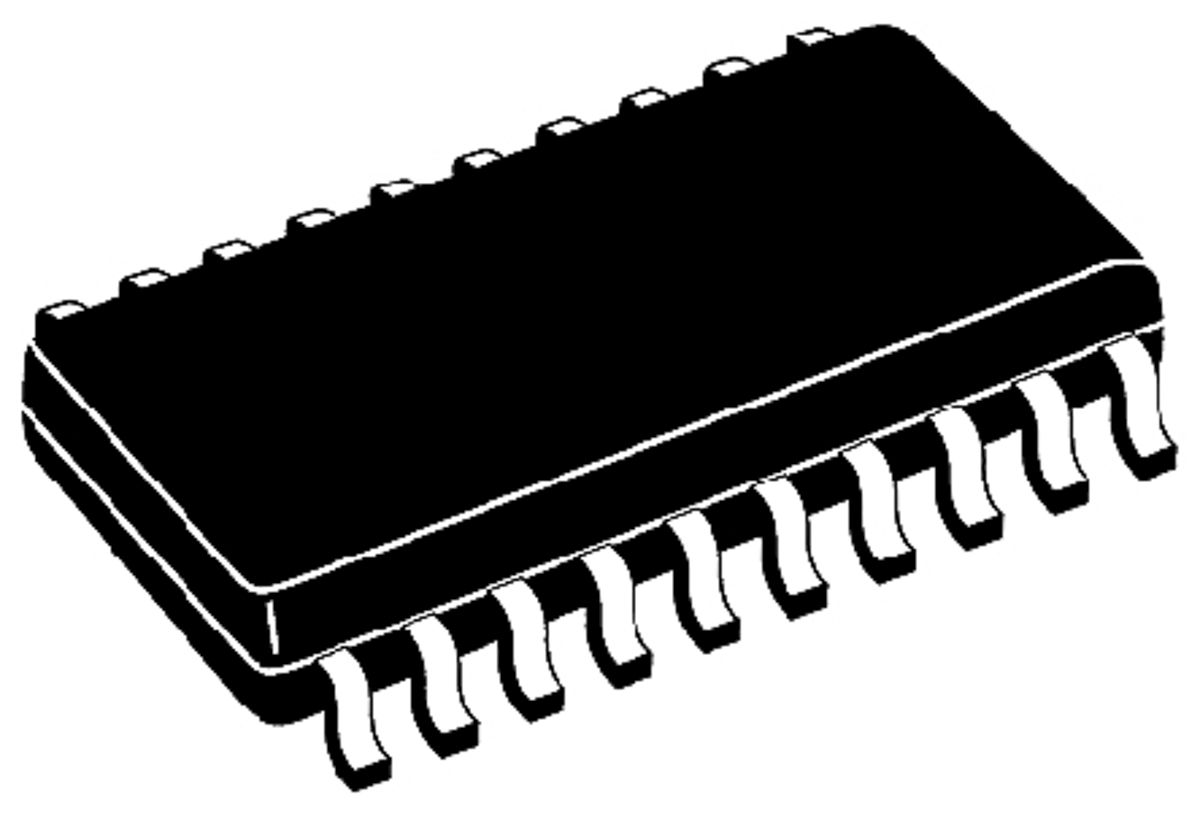

Nexperia 74ABT244D,602 Octal Buffer & Line Driver, 3-State, 20-Pin SOIC

74ABT244D-602 Nexperia 74ABT244D,602 Octal Buffer & Line Driver, 3-State, 20-Pin SOIC
Nexperia

Product Information

Polarity:
Non-Inverting
Maximum Low Level Output Current:
64mA
Dimensions:
13 x 7.6 x 2.45mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
6.6 ns @ 50 pF
Number of Channels per Chip:
8
Logic Function:
Buffer, Line Driver
Output Type:
3 State
Maximum High Level Output Current:
-32mA
Package Type:
SO
Logic Family:
74ABT
Input Type:
Single Ended
Maximum Operating Supply Voltage:
5.5 V
Minimum Operating Supply Voltage:
4.5 V
Pin Count:
20
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Octal Buffer & Line Driver 3-State 20-Pin SOIC manufactured by Nexperia. The manufacturer part number is 74ABT244D,602. While providing non-inverting polarity. On the other hand, it is featured with 64ma of max. low level output current. The given dimensions of the product include 13 x 7.6 x 2.45mm. The product is available in surface mount configuration. It provides up to 6.6 ns @ 50 pf maximum propagation delay time. It comprises 8 channels per chip. The primary function of logic includes buffer, line driver. Furthermore, it has a3 state output. While a -32ma of maximum high level output current. The package is a sort of so. The logic family is 74abt. It carries single ended input type. It has 5.5 v maximum operating supply voltage. While its minimum operating supply voltage is 4.5 v. It contains 20 pins. Features 50pf of propagation delay test condition.
