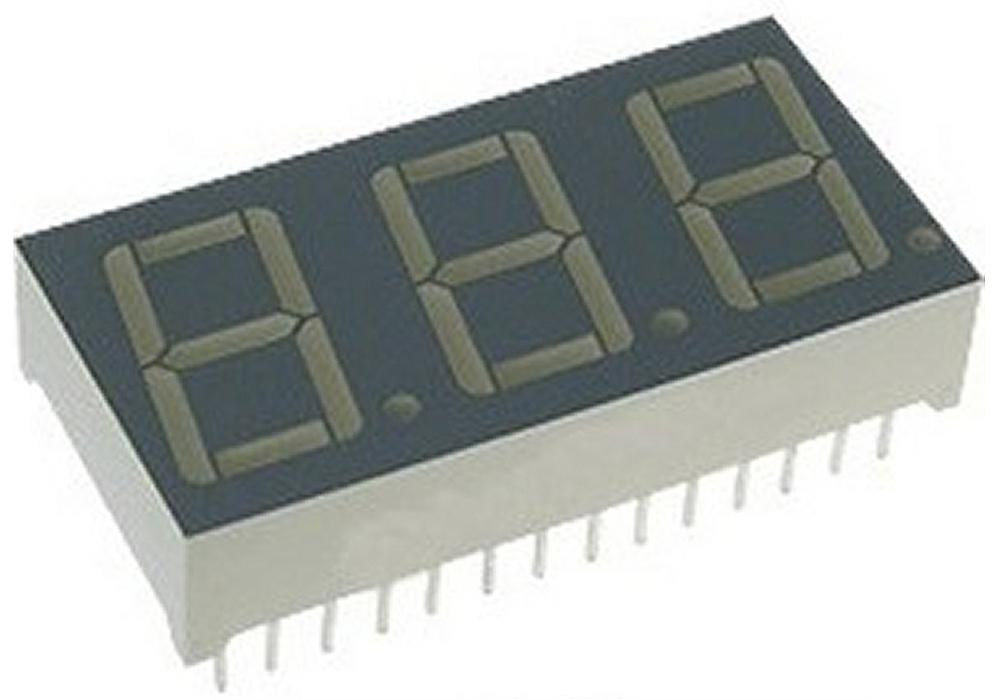

Kingbright BC56-11SYKWA

BC56-11SYKWA Kingbright
Kingbright

Product Information

Dominant Wavelength:
590 nm
Forward Current:
30mA
Common Connection:
Cathode
Character Width:
8mm
External Depth:
8.1mm
Forward Voltage:
2 V
Luminous Intensity:
120 mcd
Maximum Operating Temperature:
+85°C
Colour of Face:
Grey
Operating Temperature Range:
-40 → +85°C
Character Height:
14.2mm
Number of Segments:
7
External Dimensions:
37.6 x 19 x 8.1mm
Display Type:
7-Segment
Mounting Type:
Through Hole
Number of Characters:
3
Power Dissipation:
75mW
Minimum Operating Temperature:
-40°C
LED Colours:
Yellow
Decimal Orientation:
Right Side
External Height:
19mm
External Width:
37.6mm
HTSUS:
8541.41.0000
RoHS Status:
ROHS3 Compliant
Millicandela Rating:
120mcd
Package / Case:
28-DIP (0.600", 15.24mm)
Current - Test:
20mA
REACH Status:
REACH Unaffected
edacadModel:
BC56-11SYKWA Models
Wavelength - Peak:
590nm
edacadModelUrl:
/en/models/4098542
Package:
Tube
Digit/Alpha Size:
0.56" (14.22mm)
Common Pin:
Common Cathode
Size / Dimension:
1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm)
Power Dissipation (Max):
75mW
Number of Characters:
3
Voltage - Forward (Vf) (Typ):
2V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Display Type:
7-Segment
Color:
Yellow
Series:
-
Base Product Number:
BC56-11
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Kingbright. The manufacturer part number is BC56-11SYKWA. It has a dominant wavelength of 590 nm. It features 30ma forward current. It has a common cathode connection . In addition, it has about 8mm character width . It has an external depth of 8.1mm. The forward voltage is 2 v. It has 120 mcd of luminous intensity. It has a maximum operating temperature of +85°c. It is created with a grey colour face . The product has -40 → +85°c of operating temperature range. It has a standard 14.2mm character in height . It includes 7 segments . Features 37.6 x 19 x 8.1mm external caliber. It features a remarkable 7-segment display. The product is available in through hole configuration. Consists of 3 characters. It has about 75mw power dissipation . Whereas, the minimum operating temperature of the product is -40°c. The LED has a classic yellow colours. Its decimal orientation is to the right side . While its external height is 19mm. The product is 37.6mm wide. It is assigned with possible HTSUS value of 8541.41.0000. The product is rohs3 compliant. On the other hand, 120mcd is the millicandela rating of the bespoke product. Moreover, the product comes in 28-dip (0.600", 15.24mm). The given current test of the product is [Current -Test]. In addition, it is reach unaffected. The peak wavelength of the product is 590nm. It is shipped in tube package . It has a [Digital/Alpha Size] of digital/alpha size. The common cathode is the common pin of the product. The product's diameters include 1.480" h x 0.748" w x 0.319" d (37.60mm x 19.00mm x 8.10mm). The product carries maximum power dissipation 75mw. The typical forward voltage (Vf) of the product is 2v. Its typical moisture sensitivity level is 1 (unlimited). It has a classic yellow colour. Moreover, it corresponds to bc56-11, a base product number of the product. The product is designated with the ear99 code number.
