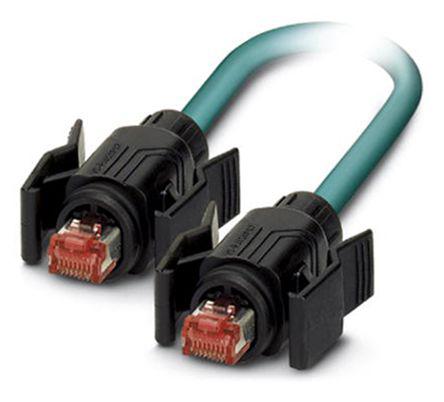

Phoenix Contact Cable assembly with a RJ45 Plug and a RJ45 Plug, ≤100 V

1404360 Phoenix Contact Cable assembly with a RJ45 Plug and a RJ45 Plug, ≤100 V
Phoenix Contact

Product Information

American Wire Gauge:
26
Connector B Number of Contacts:
8
Conductor Resistance:
290 /km
Connector B:
Straight RJ45
Connector A:
Straight RJ45
Oil Resistant:
Yes
Outer Sheath Material:
Polyurethane
Connector A Number of Contacts:
8
Number of Cores:
4
Connector A Housing Gender:
Plug
Outer Diameter:
6.4mm
Shielding:
Unshielded
Standards Met:
EN 60811-2-1, IEC 11801, IEC 11801:2002, IEC 60332-1-2, IEC 60754-1, UL
Cable Shape:
Multicore
IP Rating:
IP67
Maximum Operating Temperature:
+80°C
Voltage Rating:
≤100 V
Minimum Bend Radius:
4 x D (Fixed), 8 x D (Flexible)
Connector B Housing Gender:
Plug
Length:
2m
Number of Strands:
7
Characteristic Impedance:
100 Ω
Sheath Material:
Polyurethane PUR
Conductor Material:
Copper
Series:
VS-IP67B-IP67B-94F/2.0
Size of Strands:
0.16 mm
Sheath Colour:
Black
Cross Sectional Area:
0.14 mm²
Minimum Operating Temperature:
-20 (Flexible) °C, -40 (Fixed) °C
Insulation Material:
Foamed PE
RoHs Compliant
Checking for live stock

This is Cable assembly with a RJ45 Plug and a RJ45 Plug ≤100 V manufactured by Phoenix Contact. The manufacturer part number is 1404360. Features 26 - American Wire Gauge. Moreover, connector B consists of 8 contacts. The conductor has <lteq/>290 <ohm/>/km resistance. While the connector B is straight rj45. The connector A is straight rj45 connector. Additionally, it is oil resistant yes . Whereas the outer sheath is manufactured from polyurethane material. Connector A consists of 8 contacts. The product consists of 4 cores. On the other hand, the connector's housing (A) is a plug. Its outer diameter is 6.4mm. Furthermore, the product is shielded with unshielded. The product complies with all safety standards, such as en 60811-2-1, iec 11801, iec 11801:2002, iec 60332-1-2, iec 60754-1, ul. Moreover, this cable has a multicore shape. It is IP rated with ip67. It has a maximum operating temperature of +80°c. Moreover, the product has a nominal ≤100 v voltage rating. It bears 4 x d (fixed), 8 x d (flexible) of minimum bend radius. Its connector B housing is of plug gender . Its accurate length is 2m. Additionally, it contains 7 strands. The typical characteristic impedance includes 100 ω. The sheath is constructed from durable and adorable polyurethane pur material. The conductor is made from copper material. The product vs-ip67b-ip67b-94f/2.0, is a highly preferred choice for users. The strand size includes 0.16 mm. The sheath has an adorable black colour. The product has 0.14 mm² cross section area. Whereas, the minimum operating temperature of the product is -20 (flexible) °c, -40 (fixed) °c. It has a robust foamed pe insulation material.
