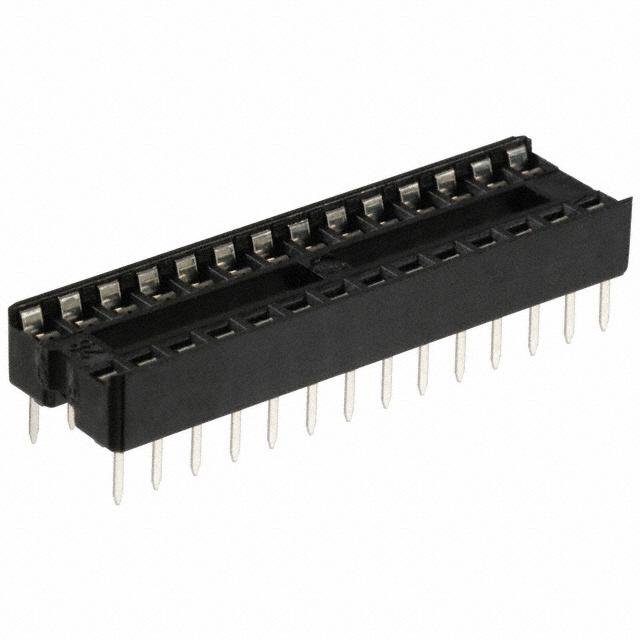

Assmann WSW Components A28-LC-7-TT-R

A28-LC-7-TT-R Assmann WSW Components
Assmann WSW Components

Product Information

Contact Resistance:
30mOhm
HTSUS:
8536.69.4040
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-55°C ~ 85°C
Number of Positions or Pins (Grid):
28 (2 x 14)
Contact Finish Thickness - Post:
60.0µin (1.52µm)
Contact Material - Mating:
Phosphor Bronze
Type:
DIP, 0.3" (7.62mm) Row Spacing
Contact Finish - Mating:
Tin
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Assmann WSW Components
Contact Material - Post:
Phosphor Bronze
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Current Rating (Amps):
1 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Open Frame
Mounting Type:
Through Hole
Termination Post Length:
0.124" (3.15mm)
Series:
-
Packaging:
Box
ECCN:
EAR99
Contact Finish Thickness - Mating:
60.0µin (1.52µm)
Pitch - Post:
0.100" (2.54mm)
Contact Finish - Post:
Tin
Checking for live stock

This is manufactured by Assmann WSW Components. The manufacturer part number is A28-LC-7-TT-R. It features a 30mohm contact resistance. It is assigned with possible HTSUS value of 8536.69.4040. The product also features robust polybutylene terephthalate (pbt) housing material. The product has -55°c ~ 85°c operating temperature range. The product is supplied with 28 (2 x 14) positions/pins. Additionally, it features 60.0µin (1.52µm) of post thickness. Its contact is manufactured from highly durable phosphor bronze. It comes in dip, 0.3" (7.62mm) row spacing configuration. It has nice contact finishing of tin. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The assmann wsw components's product offers user-desired applications. The post (contact material) is designed from high stable phosphor bronze. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. Additionally, the product's output is 1 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include open frame. The product is available in through hole configuration. The termination post is a 0.124" (3.15mm) long. In addition, box is the available packaging type of the product. The product is designated with the ear99 code number. However, 60.0µin (1.52µm) is the "Contact Finish Thickness - Mating" of the product. The given pitch of the item is 0.100" (2.54mm). It has possible tin contact post finishing.

pdf icon
A28-LC-7-TT-R(Datasheets)
pdf icon
End of Life 05/SEP/2022(PCN Design/Specification)
pdf icon
Assmann RoHS Cert(Environmental Information)
