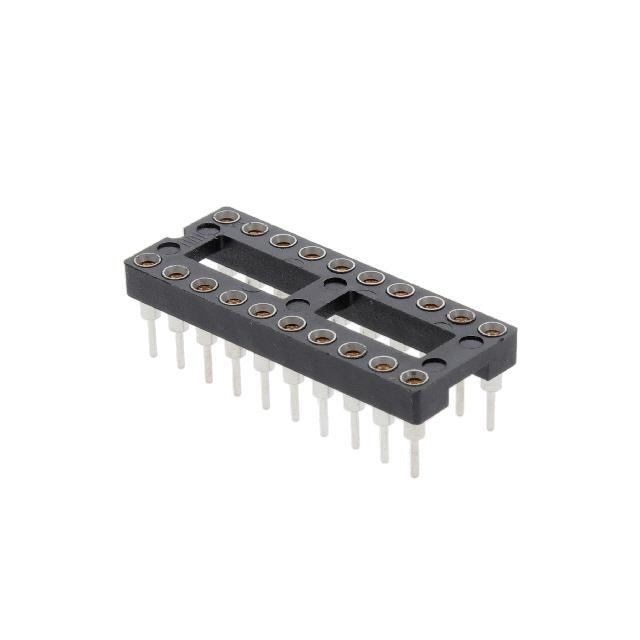

Samtec Inc. ICA-320-SGT

ICA-320-SGT Samtec Inc.
Samtec Inc.

Product Information

Contact Resistance:
10mOhm
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyester, Glass Filled
Operating Temperature:
-55°C ~ 125°C
Number of Positions or Pins (Grid):
20 (2 x 10)
Contact Finish Thickness - Post:
10.0µin (0.25µm)
Contact Material - Mating:
Beryllium Copper
Type:
DIP, 0.3" (7.62mm) Row Spacing
REACH Status:
REACH Affected
edacadModel:
ICA-320-SGT Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/6693079
Manufacturer:
Samtec Inc.
Contact Material - Post:
Brass
Contact Finish - Mating:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
1 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Open Frame
Mounting Type:
Through Hole
Termination Post Length:
0.125" (3.18mm)
Series:
ICA
Packaging:
Tube
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
ECCN:
EAR99
Base Product Number:
ICA-320
Pitch - Post:
0.100" (2.54mm)
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is ICA-320-SGT. It features a 10mohm contact resistance. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polyester, glass filled housing material. The product has -55°c ~ 125°c operating temperature range. The product is supplied with 20 (2 x 10) positions/pins. Additionally, it features 10.0µin (0.25µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in dip, 0.3" (7.62mm) row spacing configuration. In addition, it is reach affected. It carries ul94 v-0 of material flammability rating. The samtec inc.'s product offers user-desired applications. The post (contact material) is designed from high stable brass. It has nice contact finishing of gold. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 1 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include open frame. The product is available in through hole configuration. The termination post is a 0.125" (3.18mm) long. The product ica, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to ica-320, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).

pdf icon
.100" Low Profile Screw Machine DIP Socket(Datasheets)
pdf icon
ICA Series Other Related Documents 01(Other Related Documents)
pdf icon
ICx Series Drawing Sheet 2(Product Drawings)
pdf icon
ICx Series Drawing Sheet 1(Product Drawings)
