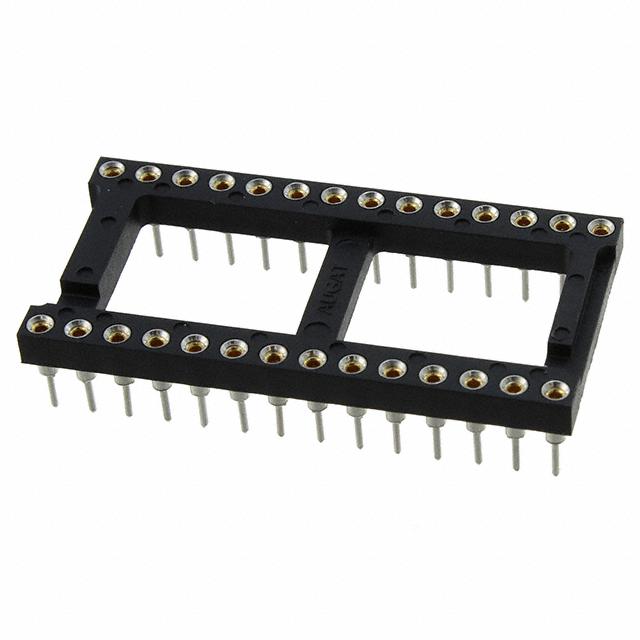

TE Connectivity AMP Connectors 828-AG11D-ESL

828-AG11D-ESL TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Resistance:
10mOhm
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Housing Material:
Polyester
Operating Temperature:
-55°C ~ 105°C
Number of Positions or Pins (Grid):
28 (2 x 14)
Contact Finish Thickness - Post:
-
Contact Material - Mating:
Copper Alloy
Type:
DIP, 0.6" (15.24mm) Row Spacing
Contact Finish - Mating:
Gold
REACH Status:
REACH Affected
Material Flammability Rating:
UL94 V-0
Contact Material - Post:
-
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Current Rating (Amps):
3 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Open Frame
Mounting Type:
Through Hole
Termination Post Length:
0.125" (3.18mm)
Series:
800
Contact Finish Thickness - Mating:
5.00µin (0.127µm)
ECCN:
EAR99
Base Product Number:
828
Pitch - Post:
0.100" (2.54mm)
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 828-AG11D-ESL. It features a 10mohm contact resistance. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product also features robust polyester housing material. The product has -55°c ~ 105°c operating temperature range. The product is supplied with 28 (2 x 14) positions/pins. Its contact is manufactured from highly durable copper alloy. It comes in dip, 0.6" (15.24mm) row spacing configuration. It has nice contact finishing of gold. In addition, it is reach affected. It carries ul94 v-0 of material flammability rating. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. Additionally, the product's output is 3 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include open frame. The product is available in through hole configuration. The termination post is a 0.125" (3.18mm) long. The product 800, is a highly preferred choice for users. However, 5.00µin (0.127µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 828, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).

pdf icon
Multiple Devices Reversal 12/Feb/2017(PCN Obsolescence/ EOL)
pdf icon
y-143753y-y 29/Apr/2016(PCN Obsolescence/ EOL)
