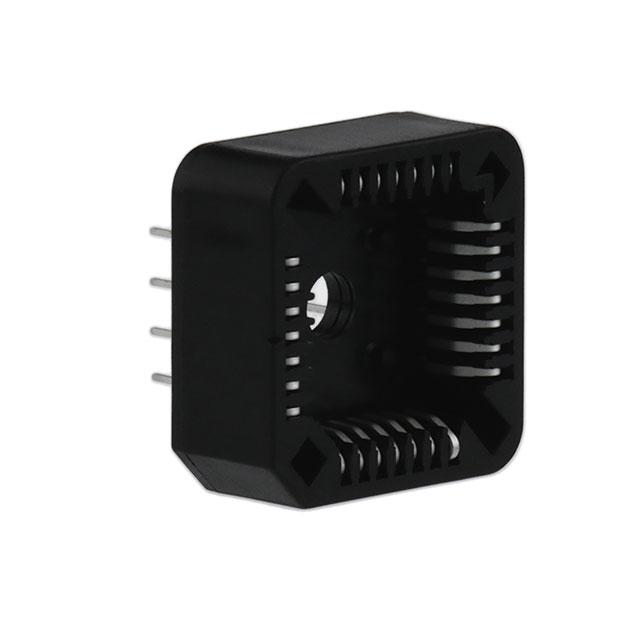

3M 8428-11B1-RK-TP

8428-11B1-RK-TP 3M
8428-11B1-RK-TP
3M

Product Information

Contact Resistance:
-
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature:
-40°C ~ 105°C
Number of Positions or Pins (Grid):
28 (4 x 7)
Contact Finish Thickness - Post:
160.0µin (4.06µm)
Contact Material - Mating:
Copper Alloy
Type:
PLCC
REACH Status:
REACH Unaffected
edacadModel:
8428-11B1-RK-TP Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1026471
Manufacturer:
3M
Contact Material - Post:
Copper Alloy
Contact Finish - Mating:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
1 A
Pitch - Mating:
0.050" (1.27mm)
Features:
Closed Frame
Mounting Type:
Through Hole
Termination Post Length:
0.132" (3.35mm)
Series:
8400
Packaging:
Tube
Contact Finish Thickness - Mating:
160.0µin (4.06µm)
ECCN:
EAR99
Base Product Number:
8428
Pitch - Post:
0.100" (2.54mm)
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 8428-11B1-RK-TP. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polybutylene terephthalate (pbt), glass filled housing material. The product has -40°c ~ 105°c operating temperature range. The product is supplied with 28 (4 x 7) positions/pins. Additionally, it features 160.0µin (4.06µm) of post thickness. Its contact is manufactured from highly durable copper alloy. It comes in plcc configuration. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The 3m's product offers user-desired applications. The post (contact material) is designed from high stable copper alloy. It has nice contact finishing of tin. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 10 weeks standard lead time. Additionally, the product's output is 1 a. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include closed frame. The product is available in through hole configuration. The termination post is a 0.132" (3.35mm) long. The product 8400, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. However, 160.0µin (4.06µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 8428, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).

pdf icon
8400 Series, Thru-Hole(Datasheets)
