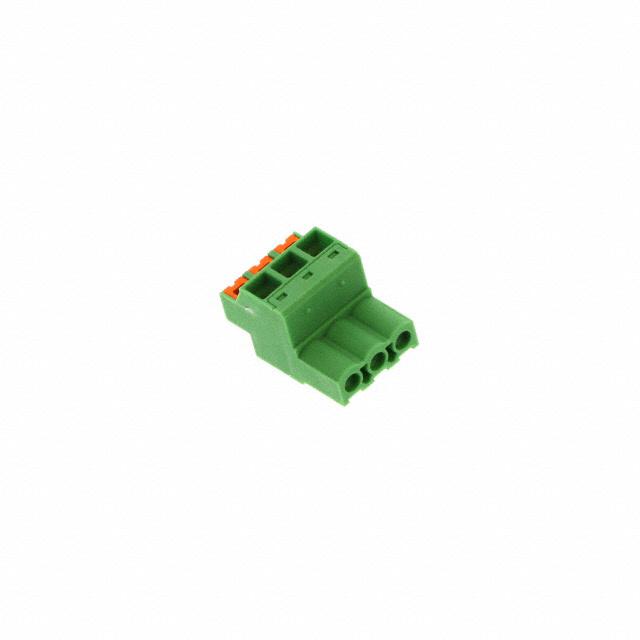

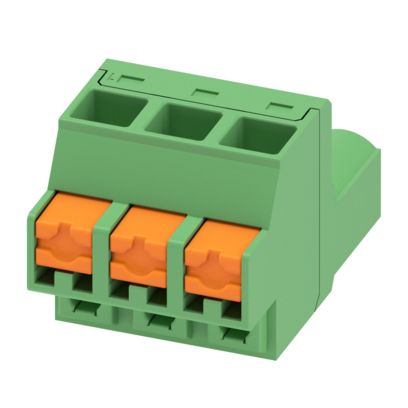

Phoenix Contact 1860552

1860552 Phoenix Contact
1860552
Phoenix Contact

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screwless - Leg Spring, Push-In Spring
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
10mm
Type:
Plug, Female Sockets
Number of Positions:
3
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
270°
Insulation Height:
0.933" (23.70mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
12A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
7 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
Lever Actuated
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON FKCOW
Positions Per Level:
3
Packaging:
Bulk
Header Orientation:
-
Current - UL:
12 A
Pitch:
0.200" (5.08mm)
Contact Material:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1860552. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screwless - leg spring, push-in spring terminal style. The product also features robust polyamide (pa), nylon housing material. The typical length of the wire strip is 10mm. It comes in plug, female sockets configuration. The product carries possible position value of 3. A 0.2-2.5mm² of wire gauge. It also a 270° plug wire entry. 0.933" (23.70mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. Its typical moisture sensitivity level is not applicable. An IEC current of 12a. The product carries 1 levels. While 12-26 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It has a long 7 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 320 v. The splendid features of the product include lever actuated. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon fkcow, is a highly preferred choice for users. It has 3 positions each level. In addition, bulk is the available packaging type of the product. The typical current includes 12 a. Moreover, the product is 0.200" (5.08mm). The product is designated with the ear99 code number.
