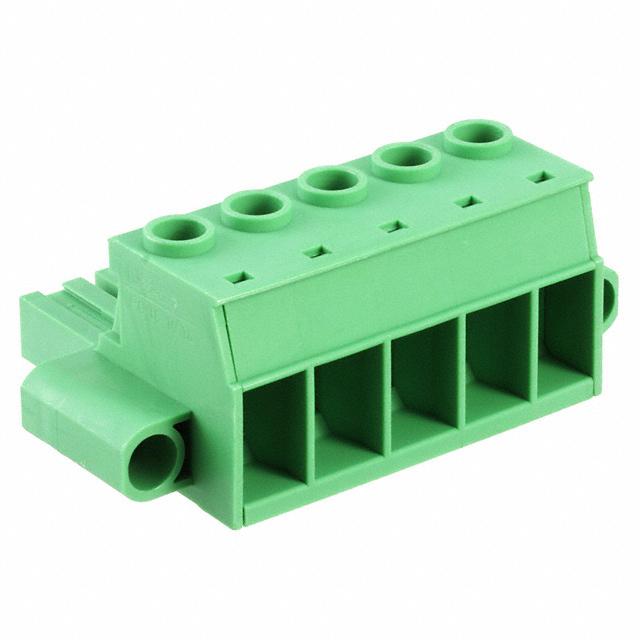

Phoenix Contact 1967485

1967485 Phoenix Contact
1967485
Phoenix Contact

Product Information

Series:
PC 16/ 5-STF-10.16
Current Rating:
76A
Mounting Type:
Plug-In
Voltage Rating:
1 kV
Gender:
Female
Colour:
Green
Material:
Polyamide
Length:
50.64mm
Termination Method:
Screw
Width:
41.5mm
Depth:
27.8mm
Number of Rows:
1
Pitch:
10.16mm
Number of Contacts:
5
Type:
Plug
Body Orientation:
Straight
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M4
Wire Strip Length:
12mm
Type:
Plug, Female Sockets
Number of Positions:
5
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.75-16mm²
Plug Wire Entry:
180°
Insulation Height:
1.094" (27.80mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
76A
Wire Gauge or Range - AWG:
6-20 AWG
Voltage - UL:
600 V
Torque - Screw:
1.7-1.8 Nm (15-15.9 Lb-In)
standardLeadTime:
11 Weeks
Contact Mating Finish:
Silver
Voltage - IEC:
1 kV
Ingress Protection:
-
Features:
Mating Flange
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON PC
Positions Per Level:
5
Header Orientation:
-
Current - UL:
55 A
Pitch:
0.400" (10.16mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1967485. The product pc 16/ 5-stf-10.16, is a highly preferred choice for users. The product has a current rating of 76a. The product is available in plug-in configuration. Moreover, the product has a nominal 1 kv voltage rating. In addition, female is the available "Gender" of the product. It has a decent green colour. The product is made from highly stable and reliable polyamide. Its accurate length is 50.64mm. It allows screw termination method. Furthermore, the product is 41.5mm wide. The product comes in 27.8mm depth. It comes in 1 of rows. Moreover, the product is 10.16mm. The product contains 5 contacts. It comes in plug configuration. It has straight body orientation. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m4. The typical length of the wire strip is 12mm. It comes in plug, female sockets configuration. The product carries possible position value of 5. A 0.75-16mm² of wire gauge. It also a 180° plug wire entry. 1.094" (27.80mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 76a. While 6-20 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It carries torque - screw values of 1.7-1.8 nm (15-15.9 lb-in). It has a long 11 weeks standard lead time. The mating finish of the contact is silver. The nominal voltage of the product is 1 kv. The splendid features of the product include mating flange. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon pc, is a highly preferred choice for users. It has 5 positions each level. The typical current includes 55 a. Moreover, the product is 0.400" (10.16mm). The product carries 1 levels. The product is designated with the ear99 code number.
