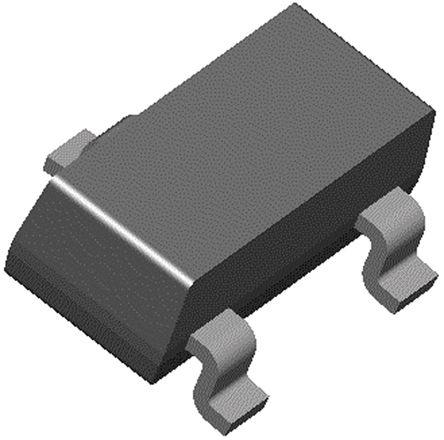

Taiwan Semiconductor TSH190CX RFG, Bipolar Hall Effect Sensor Switch, 3-Pin SOT-23

TSH190CX-RFG Taiwan Semiconductor TSH190CX RFG, Bipolar Hall Effect Sensor Switch, 3-Pin SOT-23
Taiwan Semiconductor

Product Information

Minimum Magnetic Sensor Release Point:
-110 Gs
Dimensions:
2.9 x 1.6 x 1.1mm
Mounting Type:
Surface Mount
Typical Magnetic Sensor Hysteresis:
100 Gs
Minimum Operating Supply Voltage:
4 V
Height:
1.1mm
Width:
1.6mm
Length:
2.9mm
Package Type:
SOT-23
Maximum Magnetic Sensor Operating Point:
110 Gs
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
30 V
Magnetic Type:
Bipolar
Maximum Operating Temperature:
+125 °C
Pin Count:
3
RoHs Compliant
Checking for live stock

This is Bipolar Hall Effect Sensor Switch 3-Pin SOT-23 manufactured by Taiwan Semiconductor. The manufacturer part number is TSH190CX RFG. It has about -110 gs minimum magnetic sensor release point . The given dimensions of the product include 2.9 x 1.6 x 1.1mm. The product is available in surface mount configuration. Its typical magnetic sensor hysteresis is 100 gs . While its minimum operating supply voltage is 4 v. In addition, the height is 1.1mm. Furthermore, the product is 1.6mm wide. Its accurate length is 2.9mm. The package is a sort of sot-23. Additionally, it has a maximum 110 gs magnetic sensor operating point . Whereas, the minimum operating temperature of the product is -40 °c. It has 30 v maximum operating supply voltage. Moreover, its magnetic type is bipolar . It has a maximum operating temperature of +125 °c. It contains 3 pins.

pdf icon
TSH190, Bipolar High Voltage Hall Effect Latch(Technical Reference)
