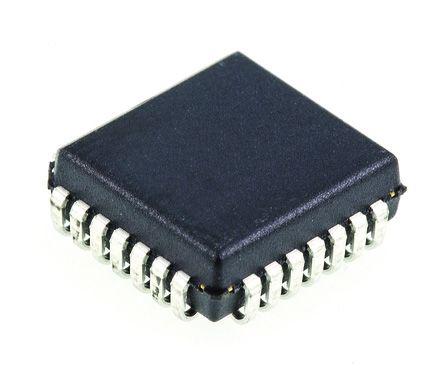

Analog Devices AD7225LPZ, 4-channel 8 bit Parallel DAC, 28-Pin PLCC

AD7225LPZ Analog Devices , 4-channel 8 bit Parallel DAC, 28-Pin PLCC
Analog Devices

Product Information

Voltage Reference:
External
Integral Nonlinearity Error:
±1/2LSB
Digital Interface Type:
Parallel
Dimensions:
11.58 x 11.58 x 4.06mm
Mounting Type:
Surface Mount
Number of DAC Channels:
4
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
4µs
Typical Single Supply Voltage:
11.4 → 16.5 V
Height:
4.06mm
Width:
11.58mm
Length:
11.58mm
Full Scale Error:
±1/2LSB
Package Type:
PLCC
Architecture:
R-2R
Output Polarity:
Bipolar, Unipolar
Maximum Operating Temperature:
+85 °C
Resolution:
8 bit
Pin Count:
28
RoHs Compliant
Checking for live stock

This is 4-channel 8 bit Parallel DAC 28-Pin PLCC manufactured by Analog Devices. The manufacturer part number is AD7225LPZ. The product has external voltage reference. Its integral nonlinearity error is ±1/2lsb . Additionally, the product has a/an parallel type digital interface . The given dimensions of the product include 11.58 x 11.58 x 4.06mm. The product is available in surface mount configuration. Additionally, it includes 4 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 4µs setting time . It has a typical single supply voltage of 11.4 → 16.5 v. In addition, the height is 4.06mm. Furthermore, the product is 11.58mm wide. Its accurate length is 11.58mm. It has a full scale error of ±1/2lsb . The package is a sort of plcc. The product has been designed as r-2r. It has bipolar, unipolar polarity . It has a maximum operating temperature of +85 °c. Features 8 bit resolution. It contains 28 pins.

pdf icon
LC2MOS Quad 8-Bit DAC with Separate Reference Inputs(Technical Reference)
