Maximum Frequency Range Square Pulse/Arbitrary Waveform:
25MHz
FM Modulation:
Yes
Width:
266mm
Variable Sweep:
Yes
Maximum Frequency Range Sinewave:
60MHz
Minimum Frequency Range Sinewave:
200kHz
Maximum Frequency Range Triangle/Saw:
1MHz
Number of Channels:
2

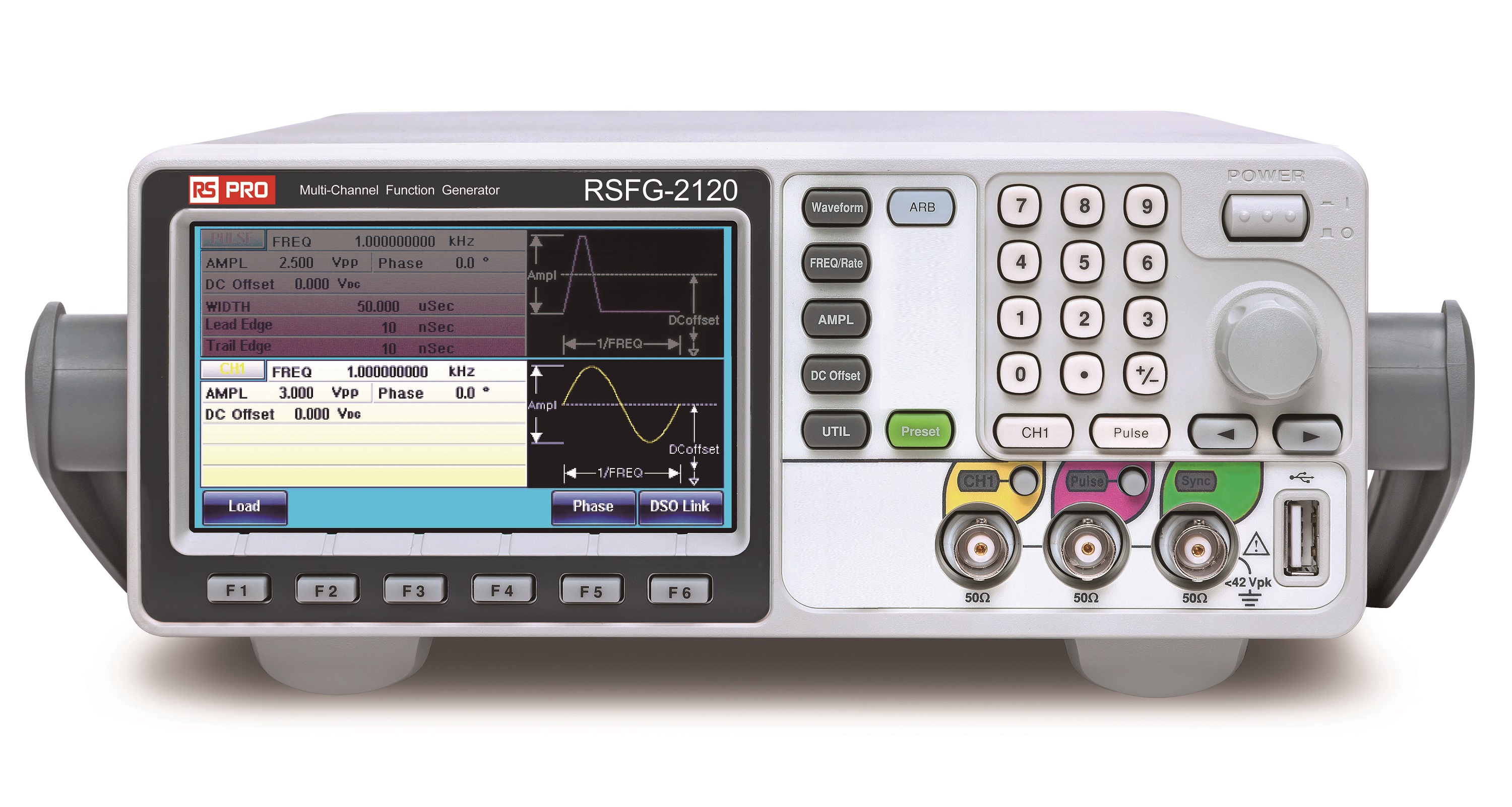

Product Type:
Function Generator
Maximum Operating Temperature:
40?C
Output Amplitude:
20 Vpp
Minimum Operating Temperature:
0?C
Length:
293mm
Standards/Approvals:
EMC 2014-30-EU, EN 55011 2009+A1:2010, EN 61000-3-2 2014, EN 61000-3-3 2013, EN 61000-4-2 2009, EN 61000-4-3 2006+A1 2008+A2:2010, EN 61000-4-5 2006, EN 61000-4-6 2014, EN 61000-4-8 2010, EN 61010-1 2010, EN 61326-1, EN 61326-2-1, IEC 61000-4-11 2004, IEC 61000-4-4 2012, LVD 2014-35-EU, RoHS 2011-65-EU, WEEE 2012-19-EU
Interface Type:
USB
Time Base Accuracy:
?20 ppm
Input Impedance:
10k?
Weight:
2.5kg
Minimum Frequency Range Square Pulse/Arbitrary Waveform:
1?Hz
Plug Type:
UK
Height:
107mm
Internal and External Amplitude Modulation:
Yes
Internal Linear and Log Sweep:
Yes
Output Impedance:
50?
Digital Amplitude and Offset:
Yes
