Maximum Frequency Range Square Pulse and Arbitrary Waveform:
25 (Square & Pulse) MHz, 40 (Arbitrary)MHz
Dimensions:
250 x 295 x 97mm
Width:
295mm
Variable Sweep:
Yes
Maximum Frequency Range Sinewave:
40MHz
Minimum Frequency Range Sinewave:
1µHz
Minimum Operating Temperature:
+5°C

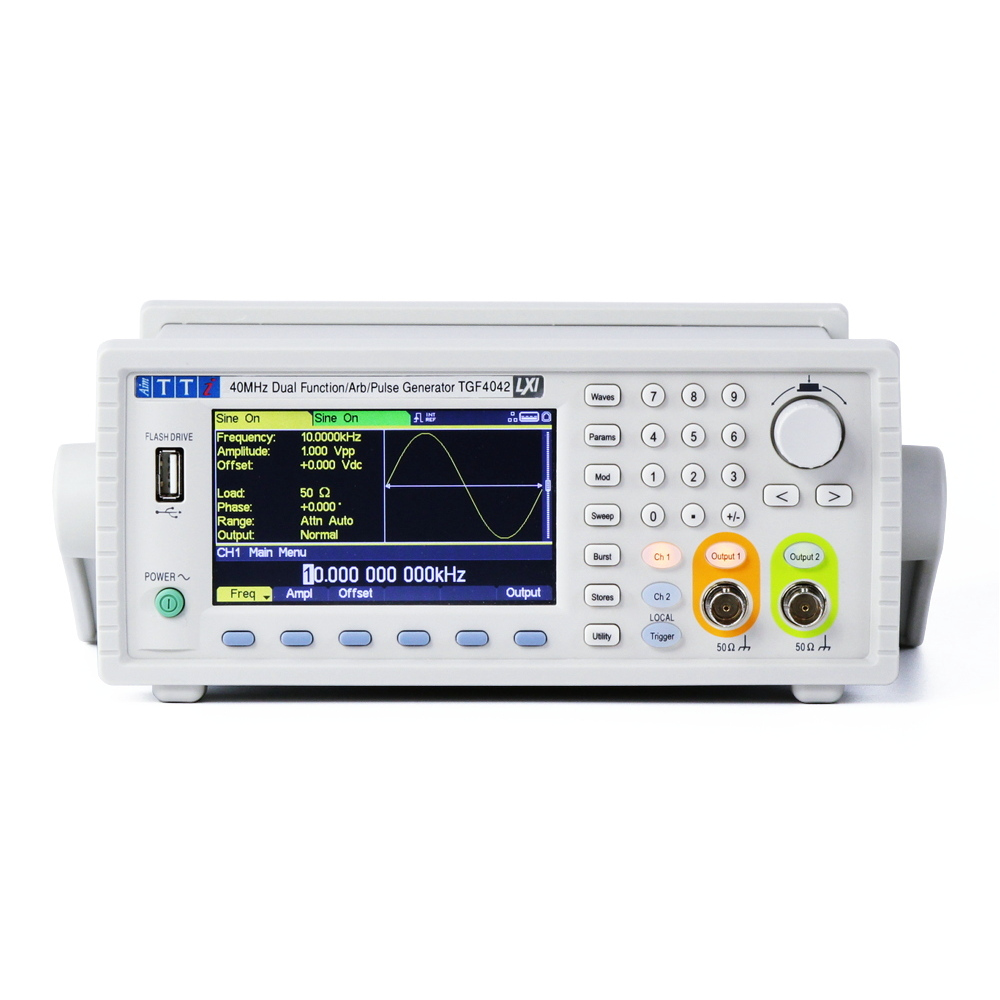

Model Number:
TGF4042
Maximum Frequency Range Triangle/Saw:
5MHz
Number of Channels:
2
Internal and External Amplitude Modulation:
Yes
Maximum Operating Temperature:
+40°C
Minimum Frequency Range Triangle/Saw:
1µHz
Output Amplitude:
10V Pk-Pk
FM Modulation:
Yes
Operating Temperature Range:
+5 → +40 °C
Length:
250mm

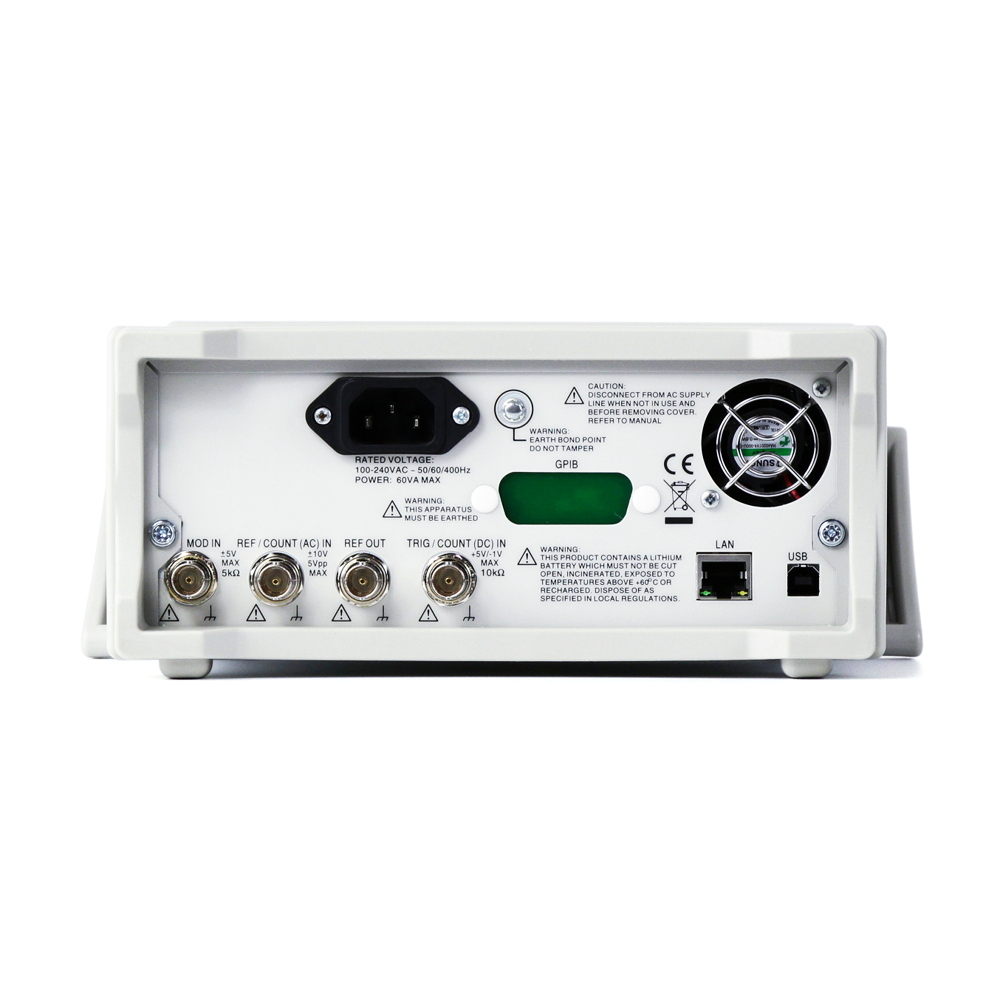

Interface Type:
GPIB, LAN, USB
Time Base Accuracy:
<±1 (Initial Settling Error) ppm, <±1(Oscillator Aging Rate) ppm, <1(Temperature Range) ppm
Minimum Frequency Range Square Pulse and Arbitrary Waveform:
1 μHz
Input Impedance:
10 kΩ
Digital Frequency:
Yes
Weight:
3.1kg
Series:
TGF4000
Frequency Range Square Pulse and Arbitrary Waveform:
1 μHz → 25 MHz (Square & Pulse), 40 (Arbitrary) MHz
Height:
97mm
Internal Linear and Log Sweep:
Yes
TTL Output Level:
10V Pk-Pk
Output Impedance:
50Ω
Digital Amplitude and Offset:
Yes
