Maximum Frequency Range Square Pulse and Arbitrary Waveform:
12MHz
Dimensions:
266 x 293 x 107mm
FM Modulation:
Yes
Width:
293mm
Variable Sweep:
Yes
Maximum Frequency Range Sinewave:
12MHz
Minimum Frequency Range Sinewave:
0.1Hz

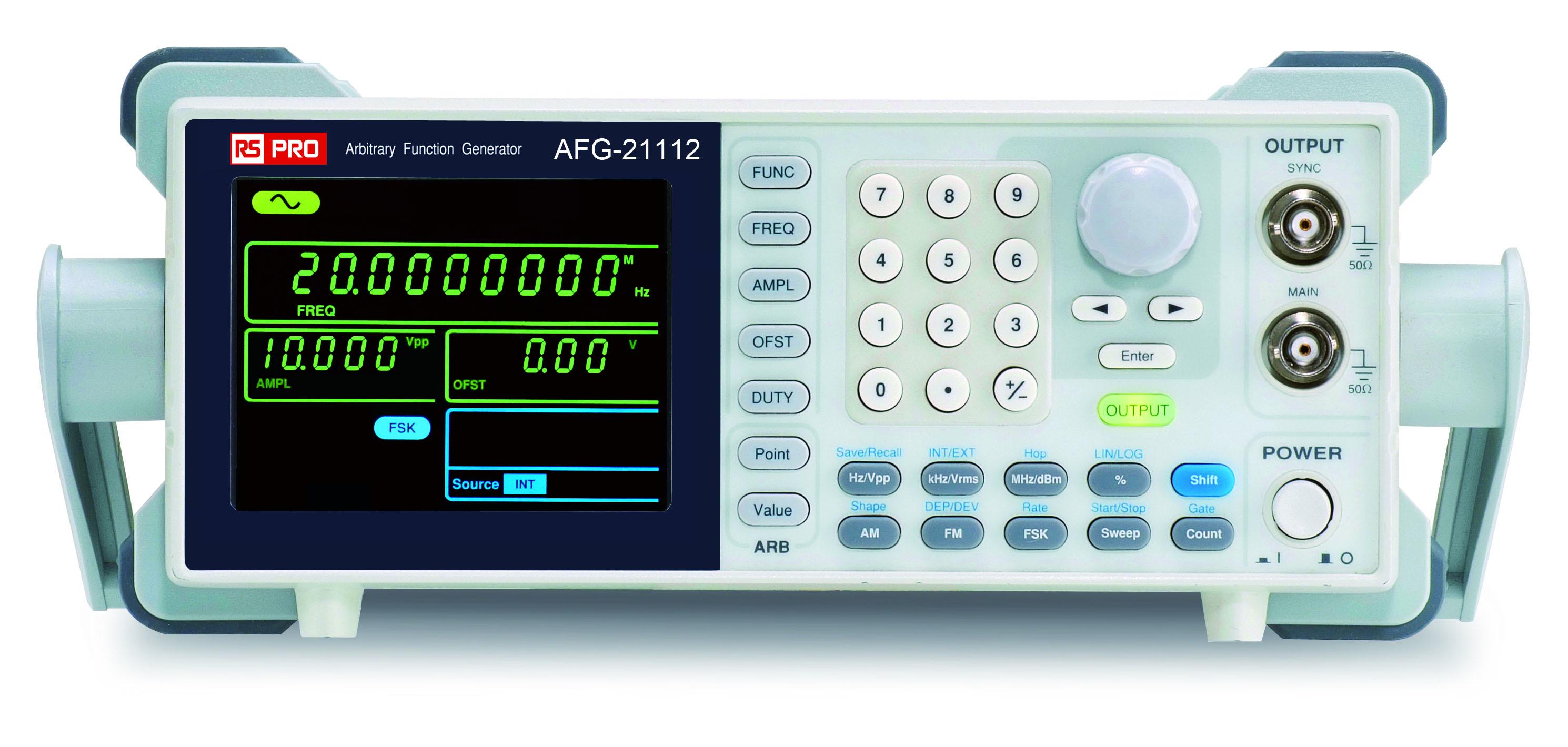

Model Number:
AFG21112
Maximum Frequency Range Triangle/Saw:
1MHz
Internal and External Amplitude Modulation:
Yes
Maximum Operating Temperature:
+40°C
Minimum Frequency Range Triangle/Saw:
0.1Hz
Output Amplitude:
1 mV Pk-Pk → 10 V Pk-Pk, 2 mV Pk-Pk → 20 V Pk-Pk (Open Circuit)
Minimum Operating Temperature:
0°C
Length:
266mm
Interface Type:
USB
Time Base Accuracy:
±20ppm
Minimum Frequency Range Square Pulse and Arbitrary Waveform:
0.1 Hz
Input Impedance:
1 kΩ
Digital Frequency:
Yes
Weight:
2.5kg
Plug Type:
UK
Frequency Range Square Pulse and Arbitrary Waveform:
0.1 Hz → 12 MHz
Height:
107mm
Internal Linear and Log Sweep:
Yes
Output Impedance:
>300 (Output Disabled) kΩ, 50 (Fixed) Ω
Digital Amplitude and Offset:
Yes
