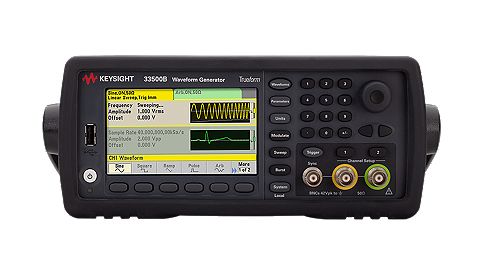

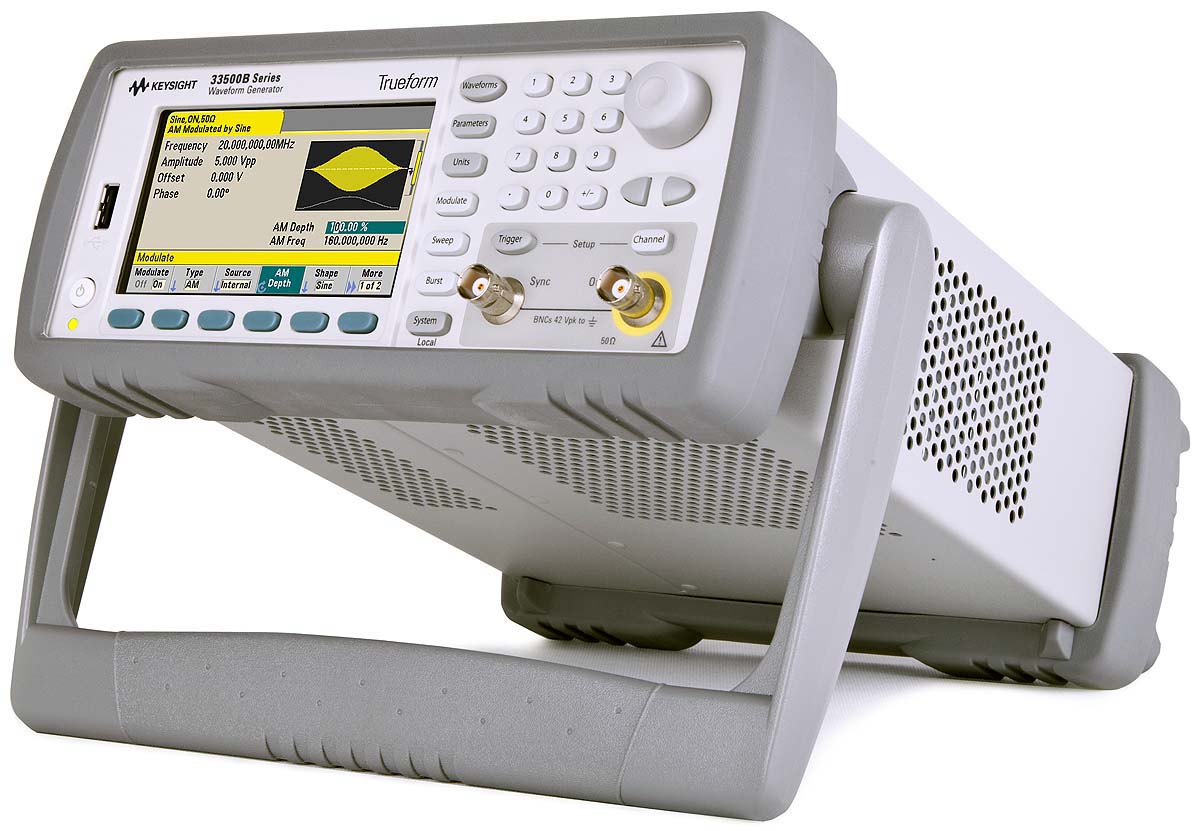

Keysight Technologies 33509B Function Generator 20MHz Ethernet, GPIB, LAN, USB

33509B Keysight Technologies Function Generator 20MHz Ethernet, GPIB, LAN, USB
33509B
33509B
ET14134198
ET14134198
33509B Keysight Technologies Function Generator 20MHz Ethernet, GPIB, LAN, USB
Keysight Technologies

Product Information

Maximum Frequency Range Square Pulse/Arbitrary Waveform:
1μHz
FM Modulation:
Yes
Width:
212.8 mm
Variable Sweep:
Yes
Maximum Frequency Range Sinewave:
20MHz
Minimum Frequency Range Sinewave:
1μHz
Model Number:
33509B
Maximum Frequency Range Triangle/Saw:
20kHz
Number of Channels:
1
Product Type:
Function Generator
Maximum Operating Temperature:
55°C
Minimum Frequency Range Triangle/Saw:
1μHz
Output Amplitude:
20 V Pk-Pk
Minimum Operating Temperature:
0°C
Length:
272.3mm
Calibrated:
RSCAL
Standards/Approvals:
ISO
Interface Type:
LAN, USB, Ethernet, GPIB
Time Base Accuracy:
±0.1 ppm
Input Impedance:
5kΩ
Weight:
3.3kg
Minimum Frequency Range Square Pulse/Arbitrary Waveform:
30MHz
Plug Type:
UK, EU
Height:
88.3mm
Internal and External Amplitude Modulation:
Yes
Internal Linear and Log Sweep:
Yes
Digital Frequency:
Yes
Digital Amplitude and Offset:
Yes
RoHs Compliant
Checking for live stock

The Keysight Technologies 33509B is a high-performance 20MHz function and arbitrary waveform generator designed to provide superior signal integrity. This single-channel device offers advanced Trueform technology, ensuring high-fidelity waveforms with minimal jitter and total harmonic distortion. Featuring integrated Ethernet, USB, LAN, and GPIB interfaces, it facilitates seamless connectivity for modern laboratory environments. Its versatile design supports various modulation types, making it perfect for precise signal testing and analysis.

Why Should You Buy the Keysight Technologies 33509B Function Generator?

This function generator is a premier investment for engineers requiring unparalleled waveform precision. Its Trueform technology eliminates common signal errors, while the extensive interface options ensure easy integration into automated test systems. This generator offers the reliability and flexibility needed for complex R&D and manufacturing validation tasks.

Feature Highlights & Applications Areas of 33509B

  • 20MHz frequency range for sine, square, and arbitrary waveforms.
  • Trueform technology for superior signal fidelity and low jitter.
  • Comprehensive connectivity including USB, LAN (LXI-C), and GPIB interfaces.
  • Internal linear and log sweep with built-in AM, FM, PM, and FSK modulation.
  • Large colour display for intuitive parameter adjustment and waveform visualisation.
  • Application in electronic circuit design and troubleshooting.
  • Used in educational labs for signal analysis demonstrations.
  • Ideal for automated manufacturing test and verification systems.

pdf icon
33500 Series Waveform Generator Operating and Service Guide(Technical Reference)
pdf icon
33500 Series Waveform Generator Data Sheet(Technical Reference)
