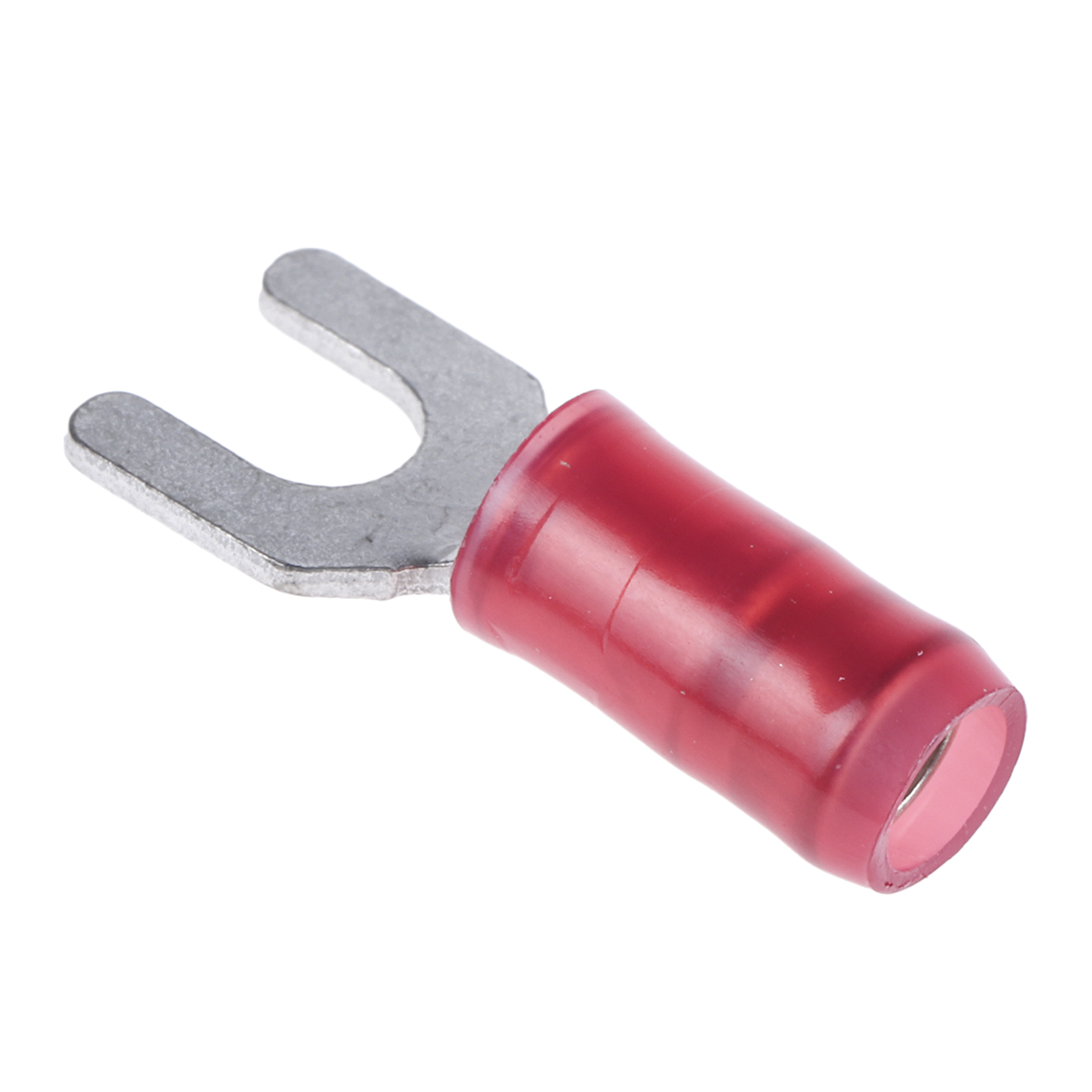

TE Connectivity PIDG Series Insulated Crimp Spade Connector, 22AWG to 16AWG, M3.5 Stud Size Nylon, Red

Enrgtech Part No: ET14025530
|
Manufacturer Part No:
34080
|
Manufacturer: TE Connectivity

34080 TE Connectivity PIDG Series Insulated Crimp Spade Connector, 22AWG to 16AWG, M3.5 Stud Size Nylon, Red

Product Information

Contact Plating:

Tin

Minimum Wire Size AWG:

22AWG

Series:

PIDG

Colour:

Red

Hooked:

Thickness:

0.84mm

Stud Size:

M3.5

Width:

7.54mm

Standards/Approvals:

Insulation Material:

Nylon

Overall Length:

19.13mm

Insulation:

Insulated

29 - In Stock

Ships in 5-7 business days

Quantity

Unit Price (ex VAT)

Price

£ 351.24

Mfr Part No:

34080

Seller:

TE Connectivity

Origin:

Warranty:

Manufacturer

Data Code:

ET14025530

Order Today!

From: United Kingdom

Est Ship Date: 08 Jun, 2026

Est Fastest Delivery: 10 Jun, 2026

Quantity Quantity

The TE Connectivity 34080 is a premium PIDG series insulated fork terminal. It is designed for uniform reliability in difficult circuit environments. This connector is ideal for 22 AWG to 16 AWG wires. Its red nylon insulation allows for easy size identification. The robust construction guarantees safety and longevity in various electronic projects.

Advanced Features & Technical Specifications

Series: PIDG (Pre-Insulated Diamond Grip)
Wire Size (AWG): 22 – 16 AWG
Wire Size (mm²): 0.3 – 1.42 mm²
Stud Size: #6 / M3.5
Insulation Material: Nylon (Polyamide)
Insulation Colour: Red
Contact Material: Copper Body
Contact Plating: Tin Plated
Voltage Rating: 300V
Operating Temperature: 105°C (221°F)
Terminal Orientation: Straight
Overall Length: 19.13 mm.

Why Choose This Product - Benefits

The TE Connectivity 34080 insulated crimp spade terminal offers vibration resistance and excellent insulation. It ensures a uniform crimp that protects the wire conductor.

Vibration Resistance: Copper sleeve provides extra support to prevent wire breakage.
Safety Standard: Meets or exceeds various military and commercial performance requirements.
User-Friendly Design: Colour-coded sleeves simplify identification and tool matching during production.
