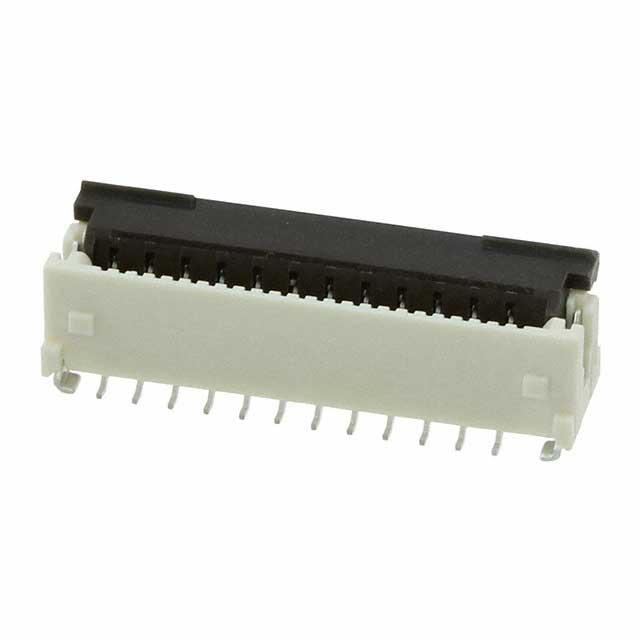

Molex 5019512400

5019512400 Molex
5019512400
Molex

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature:
-25°C ~ 85°C
Height Above Board:
0.159" (4.04mm)
Actuator Color:
Brown
Contact Finish Thickness:
-
standardLeadTime:
19 Weeks
Locking Feature:
Flip Lock
title:
5019512400
REACH Status:
REACH Unaffected
Number of Positions:
24
edacadModel:
5019512400 Models
Flat Flex Type:
FFC, FPC
Housing Color:
White
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4862424
Manufacturer:
Molex
Voltage Rating:
50V
Contact Finish:
Tin Bismuth
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
-
Current Rating (Amps):
0.4A
Connector/Contact Type:
Contacts, Vertical - 1 Sided
Features:
-
Mounting Type:
Surface Mount
Series:
Easy-On 501951
FFC, FCB Thickness:
0.30mm
Packaging:
Tape & Reel (TR)
Base Product Number:
501951
Pitch:
0.020" (0.50mm)
Contact Material:
Copper Alloy
Actuator Material:
Polyamide (PA9T), Nylon 9T, Glass Filled
Cable End Type:
Straight, Tapered
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5019512400. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust liquid crystal polymer (lcp), glass filled housing material. The product has -25°c ~ 85°c operating temperature range. It is 0.159" (4.04mm) high above board. The actuator has a classic brown colour. It has a long 19 weeks standard lead time. The product has a locking feature of flip lock. In addition, it is reach unaffected. The product carries possible position value of 24. It is a flat flex ffc, fpc type. It has an integral white housing colour. It carries ul94 v-0 of material flammability rating. The molex's product offers user-desired applications. Moreover, the product has a nominal 50v voltage rating. Furthermore, the product is galvanized with excellent tin bismuth contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. Additionally, the product's output is 0.4a. It has built-in connector or contact of contacts, vertical - 1 sided. The product is available in surface mount configuration. The product easy-on 501951, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to 501951, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy copper alloy materials. The actuator is designed from sturdy polyamide (pa9t), nylon 9t, glass filled material. The cable end is a type of straight, tapered end. The product is designated with the ear99 code number.

pdf icon
501951yyy0 Location 29/Dec/2021(PCN Assembly/Origin)
pdf icon
5019512400(Datasheets)
pdf icon
501951-2400.pdf(3D Drawings)
