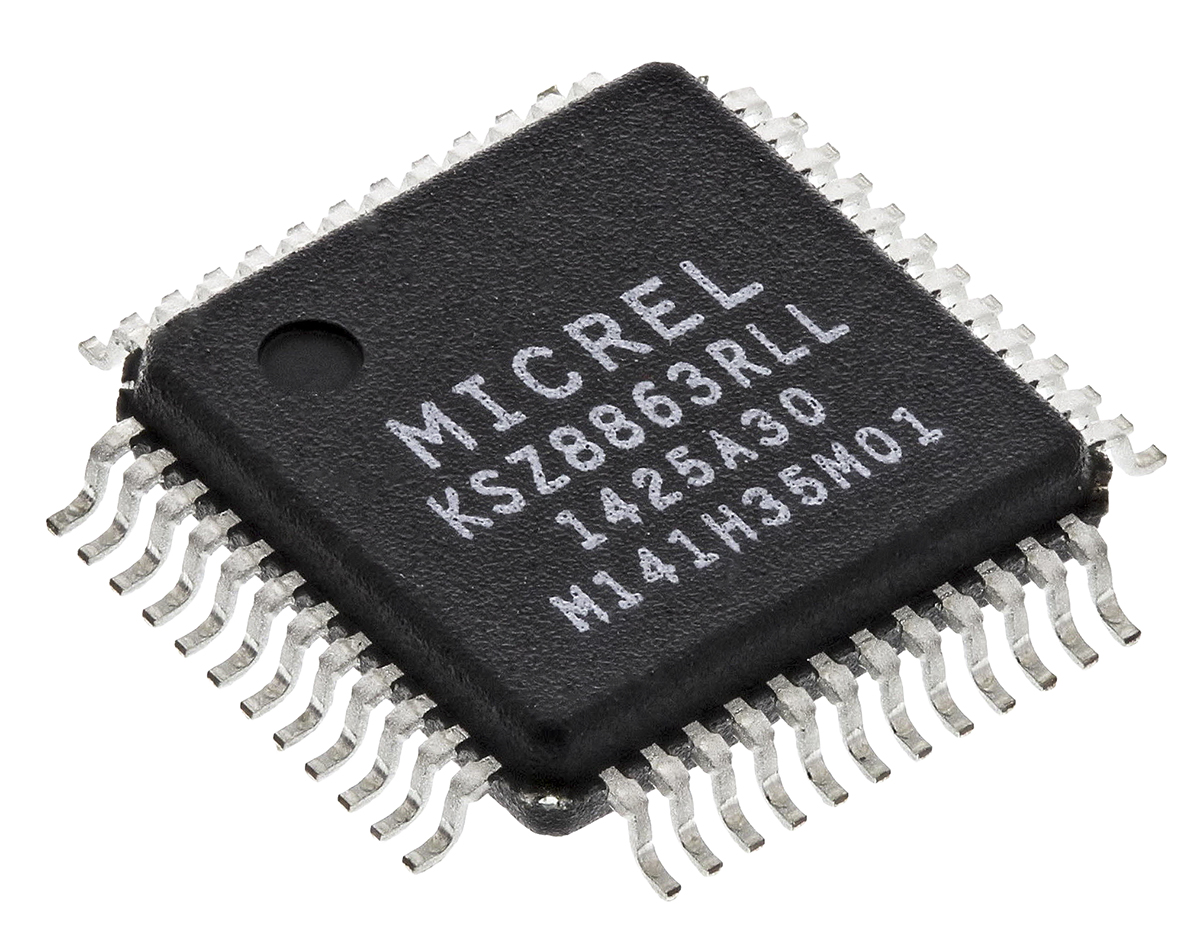

Microchip KSZ8863RLL, 3-Port Ethernet Switch, MII/RMII, 10 Mbps, 100 Mbps 1.8 V, 3.3 V, 48-Pin LQFP

KSZ8863RLL Microchip , 3-Port Ethernet Switch, MII/RMII, 10 Mbps, 100 Mbps 1.8 V, 3.3 V, 48-Pin LQFP
KSZ8863RLL
Microchip

Product Information

Network Interface:
MII, RMII
Dimensions:
7 x 7 x 1.4mm
Mounting Type:
Surface Mount
VLAN Support:
Yes
IC Type:
Switch IC
Typical Operating Supply Voltage:
1.8 V, 3.3 V
Number of Ports:
3
Package Type:
LQFP
Minimum Operating Temperature:
0 °C
Data Rate:
10 Mbps, 100Mbps
Fibre Support:
Yes
Maximum Operating Temperature:
+70 °C
Pin Count:
48
RoHs Compliant
Checking for live stock

The Microchip KSZ8863RLL is a versatile 3-Port Ethernet Switch built to meet the needs of modern networking applications. With support for MII/RMII interfaces and data rates of 10 Mbps and 100 Mbps, this 48-pin LQFP packaged switch offers an array of features and benefits that set it apart in the world of Ethernet switches. It provides both Media Independent Interface (MII) and Reduced Media Independent Interface (RMII) options. This versatility enables it to seamlessly integrate into various network setups, offering compatibility and flexibility to system designers.

  • Comprehensive Network Features

The switch supports essential networking features like VLAN tagging, Quality of Service (QoS) prioritisation, and Jumbo Frame support. These features enhance network performance, making it suitable for data-intensive applications.

Significant Benefits

  • The ability to switch between MII and RMII interfaces, along with dual voltage operation.
  • The 48-pin LQFP package ensures that the KSZ8863RLL can fit into space-constrained designs.
  • Dual voltage operation allows for power optimisation, contributing to energy-efficient system designs.
  • The support for VLANs, QoS, and Jumbo Frames ensures that the switch can handle data-intensive tasks with ease.

Dual Voltage Operation

This Ethernet switch operates on two voltage levels, 1.8 V and 3.3 V, providing options for power optimisation. Designers can choose the voltage level that best suits their power requirements, contributing to energy-efficient designs.

The Microchip KSZ8863RLL, 3-Port Ethernet Switch, MII/RMII, 10 Mbps, 100 Mbps 1.8 V, 3.3 V, 48-Pin LQFP: Wide Application Range

The Ethernet Switch finds applications in a wide range of industries, contributing to efficient and reliable network connectivity, including:

  • IoT Devices: The KSZ8863RLL is well-suited for IoT applications where multiple sensors and devices need to connect to a network, exchanging data efficiently and reliably.
  • Industrial Automation: In industrial settings, where robustness and reliability are paramount, this Ethernet switch can facilitate communication between various machinery and control systems.
  • Embedded Systems: Embedded systems in automotive, consumer electronics, and more can benefit from the compact form factor and versatile interface options of the KSZ8863RLL.
  • Smart Home Appliances: For smart home appliances that require network connectivity, such as smart thermostats and security cameras, this switch can ensure seamless communication.

pdf icon
KSZ8863MLL/FLL/RLL, Integrated 3-Port 10/100 Managed Switch with PHYs(Technical Reference)
