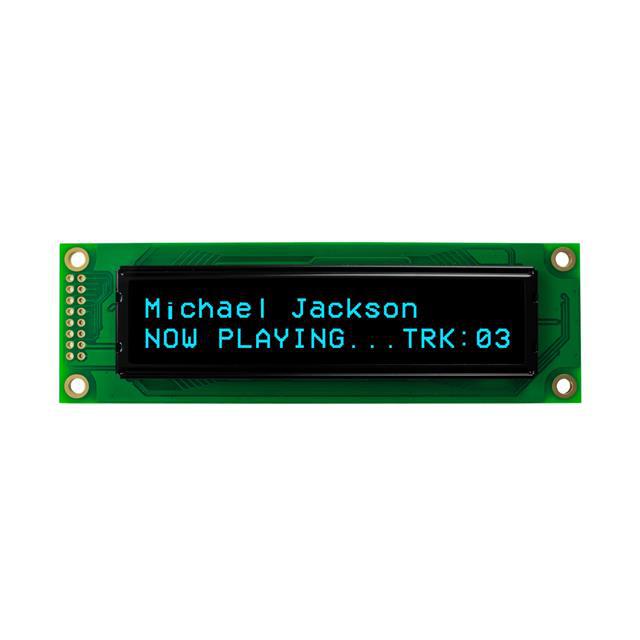

Newhaven Display Intl NHD-0220DZW-AB5

NHD-0220DZW-AB5 Newhaven Display Intl
Newhaven Display Intl

Product Information

Character Size:
5.55mm H x 3.20mm W
HTSUS:
8531.20.0020
RoHS Status:
ROHS3 Compliant
Character Format:
5 x 8 Dots
Display Format:
20 x 2
Operating Temperature:
-40°C ~ 80°C
REACH Status:
REACH Unaffected
Interface:
Parallel/Serial
Package:
Bulk
Viewing Area:
85.00mm L x 18.60mm W
Moisture Sensitivity Level (MSL):
Not Applicable
Text Color:
Blue
standardLeadTime:
28 Weeks
Background Color:
Black
Display Type:
OLED
Series:
-
Number of Characters:
40
Outline L x W x H:
116.00mm x 37.00mm x 9.80mm
Voltage - Supply:
3V ~ 5.3V
Base Product Number:
NHD-0220
Display Mode:
-
Dot Size:
0.60mm W x 0.65mm H
Backlight:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Newhaven Display Intl. The manufacturer part number is NHD-0220DZW-AB5. Its character size is 5.55mm h x 3.20mm w. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs3 compliant. It has a given 5 x 8 dots character format. It has a typical 20 x 2 display format. The product has -40°c ~ 80°c operating temperature range. In addition, it is reach unaffected. A bespoke product is parallel/serial interface. It is shipped in bulk package . Provides a 85.00mm l x 18.60mm w viewing area. Its typical moisture sensitivity level is not applicable. The text is provided in blue colour. It has a long 28 weeks standard lead time. The product has a classic black background colour. It features a remarkable oled display. Consists of 40 characters. Outline Specifications include in (L x W x H) - 116.00mm x 37.00mm x 9.80mm. It has optimum voltage supply of 3v ~ 5.3v. Moreover, it corresponds to nhd-0220, a base product number of the product. Has a dot size of 0.60mm w x 0.65mm h. The product is designated with the ear99 code number.

pdf icon
NHD-0220DZW 20/Dec/2021(PCN Design/Specification)
pdf icon
NHD-0220DZW 04/Dec/2019(PCN Design/Specification)
pdf icon
NHD-0220DZW-AB5(Datasheets)
pdf icon
LCD Solvent Precautions(Other Related Documents)
pdf icon
LCD Safe Handling Procedure(Other Related Documents)
