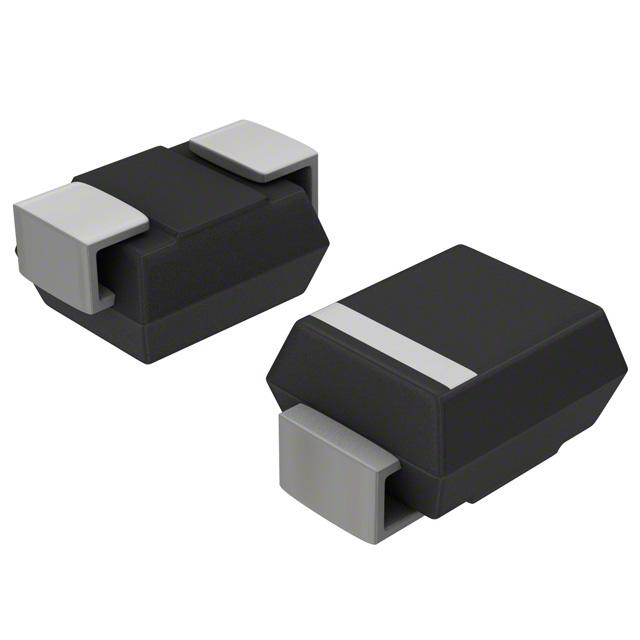

SMC Diode Solutions SD560C

SD560C SMC Diode Solutions
SMC Diode Solutions

Product Information

HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
DO-214AB, SMC
Operating Temperature - Junction:
-55°C ~ 125°C
REACH Status:
REACH Affected
Current - Average Rectified (Io):
5A
Speed:
Standard Recovery >500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
1.2 V @ 5 A
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
600 V
Capacitance @ Vr, F:
50pF @ 4V, 1MHz
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
8 Weeks
Current - Reverse Leakage @ Vr:
9 µA @ 600 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SMC (DO-214AB)
Technology:
Standard
Base Product Number:
SD560
ECCN:
EAR99
Checking for live stock

This is manufactured by SMC Diode Solutions. The manufacturer part number is SD560C. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in do-214ab, smc. The product operate at temperatures ranging from -55°c ~ 125°c. In addition, it is reach affected. It features a 5a of average rectified current. It has a robust speed of standard recovery >500ns, > 200ma (io). The product has a maximum forward voltage of 1.2 v @ 5 a. It is shipped in tape & reel (tr) package . While it has maximum reverse voltage of 600 v. Moreover, the product has a 50pf @ 4v, 1mhz capacitance. Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. 9 µa @ 600 v is the reverse leakage value of a bespoke product. The product is available in surface mount configuration. smc (do-214ab) is the supplier device package value. This product use standard technology. Moreover, it corresponds to sd560, a base product number of the product. The product is designated with the ear99 code number.
