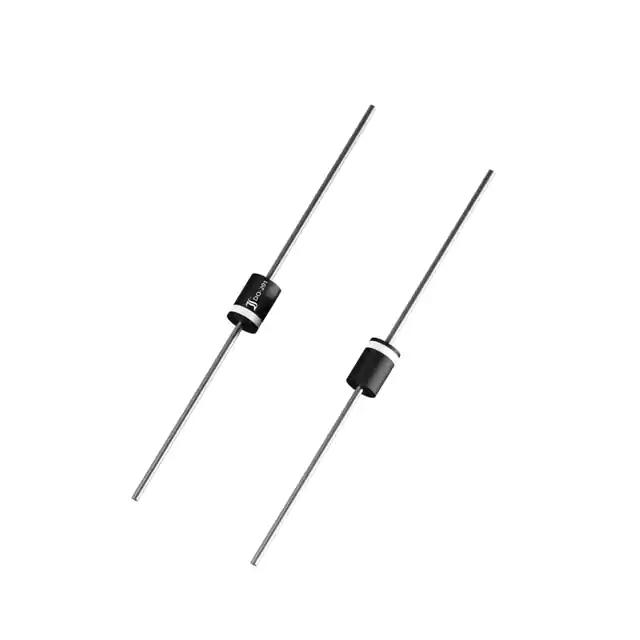

DComponents SB560-3G

SB560-3G DComponents
DComponents

Product Information

HTSUS:
8541.10.0000
RoHS Status:
RoHS non-compliant
Package / Case:
DO-201AA, DO-27, Axial
Operating Temperature - Junction:
-50°C ~ 150°C
REACH Status:
REACH info available upon request
Current - Average Rectified (Io):
5A
Voltage - Forward (Vf) (Max) @ If:
670 mV @ 5 A
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
60 V
Capacitance @ Vr, F:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Reverse Leakage @ Vr:
50 µA @ 60 V
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
DO-201
Diode Type:
Schottky
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Checking for live stock

This is manufactured by DComponents. The manufacturer part number is SB560-3G. It is assigned with possible HTSUS value of 8541.10.0000. The product is rohs non-compliant. Moreover, the product comes in do-201aa, do-27, axial. The product operate at temperatures ranging from -50°c ~ 150°c. In addition, it is reach info available upon request. It features a 5a of average rectified current. The product has a maximum forward voltage of 670 mv @ 5 a. It is shipped in tape & reel (tr) package . While it has maximum reverse voltage of 60 v. Its typical moisture sensitivity level is not applicable. 50 µa @ 60 v is the reverse leakage value of a bespoke product. The product is available in through hole configuration. do-201 is the supplier device package value. It is designed with a schottky diode. It has a robust speed of fast recovery =< 500ns, > 200ma (io).

pdf icon
SB560-3G Datasheet(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SB560-3G on website for other similar products.
We accept all major payment methods for all products including ET22261567. Please check your shopping cart at the time of order.
You can order DComponents brand products with SB560-3G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Diodes - Rectifiers - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DComponents SB560-3G. You can also check on our website or by contacting our customer support team for further order details on DComponents SB560-3G.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22261567 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search&nbsp;"DComponents" products on our website by using Enrgtech's Unique&nbsp;Manufacturing Part Number ET22261567.
Yes. We ship SB560-3G Internationally to many countries around the world.
