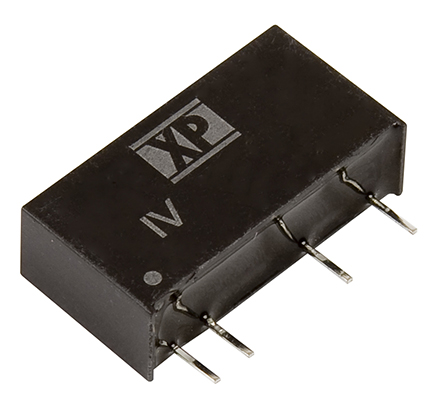

XP Power IV2409SA

IV2409SA XP Power
IV2409SA
XP Power

Product Information

Number of Outputs:
1
Load Regulation:
±10%
Isolation Voltage:
3kV dc
Efficiency:
75%
Mounting Type:
Through Hole
Package:
SIP
Maximum Temperature:
+85°C
Series:
IV
Input Voltage Range:
21.6 → 26.4 V dc
Length:
19.5mm
Isolated:
Yes
Width:
6mm
Depth:
9.5mm
Output Voltage:
9V dc
Minimum Temperature:
-40°C
Input Voltage Nominal:
24 V dc
Power Rating:
1W
Output Current:
112mA
Base Product Number:
IV2409
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Power (Watts):
1 W
Current - Output (Max):
112mA
Package / Case:
7-SIP Module, 4 Leads
Voltage - Input (Min):
21.6V
Type:
Isolated Module
Applications:
ITE (Commercial)
Voltage - Output 1:
9V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
75%
Voltage - Input (Max):
26.4V
Control Features:
-
Package:
Tube
Size / Dimension:
0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
standardLeadTime:
17 Weeks
Voltage - Isolation:
3 kV
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Mounting Type:
Through Hole
Series:
IV (1W)
Operating Temperature:
-40°C ~ 85°C
Standard Number:
62368-1
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by XP Power. The manufacturer part number is IV2409SA. Additionally, the product is supplied with 1 outputs. Load Regulation - ±10%. It has 3kv dc isolation voltage. It is a highly efficient product with an 75% of high efficiency. The product is available in through hole configuration. It is shipped in sip package . The product has +85°c maximum temperature. The product iv, is a highly preferred choice for users. It has 21.6 → 26.4 v dc of input voltage range. Its accurate length is 19.5mm. Isolated options - yes. Furthermore, the product is 6mm wide. The product comes in 9.5mm depth. Features a 9v dc output voltage. While its minimum temperature is -40°c. It has 24 v dc of nominal input voltage. Feature 1w of power rating. It carries 112ma output current. Moreover, it corresponds to iv2409, a base product number of the product. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. The product features power and watts of 1 w. The maximum product's output current is 112ma. Moreover, the product comes in 7-sip module, 4 leads. It offers 21.6v of minimum input voltage. It comes in isolated module configuration. The product is widely employed in ite (commercial). It has a 9v output voltage. Its maximum input voltage is 26.4v. It is shipped in tube package . The product's diameters include 0.77" l x 0.24" w x 0.39" h (19.5mm x 6.0mm x 10.0mm). It has a long 17 weeks standard lead time. 3 kv of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product iv (1w), is a highly preferred choice for users. The product has -40°c ~ 85°c operating temperature range. Standard number include: 62368-1. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
IV Series, 1 W Datasheet(Datasheets)
pdf icon
RoHS3 IV Series(Environmental Information)
pdf icon
RoHS Statement(Environmental Information)
