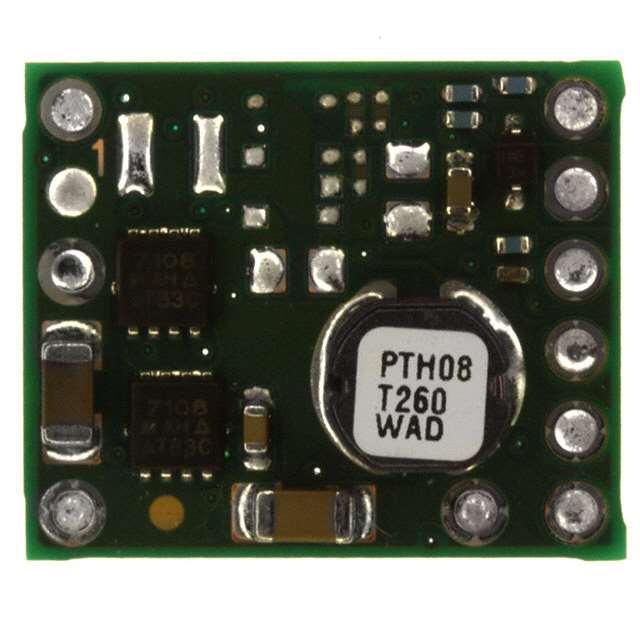

Texas Instruments PTH08T260WAD

Enrgtech Part No: ET11190413
|
Manufacturer Part No:
PTH08T260WAD
|
Manufacturer: Texas Instruments

Product Information

The PTH08T260WAD is a powerful and versatile DC-DC converter designed by Texas Instruments, capable of seamlessly transforming input voltages ranging from 0.69V to 5.5V into reliable and stable power output. Built with cutting-edge technology and robust design, it is an exceptional DC-DC converter, delivering precise voltage conversion and ensuring optimal performance in diverse electronic applications.

Number of Outputs:

Load Regulation:

±2 mV

Line Regulation:

±3 mV

Maximum Switching Frequency:

300 KHz

Maximum Output Current:

HTSUS:

8504.40.9580

RoHS Status:

ROHS3 Compliant

Voltage - Output 1:

0.69 ~ 5.5V

Operating Temperature:

-40°C ~ 85°C

Current - Output (Max):

Package / Case:

10-DIP Module

Voltage - Input (Min):

4.5V

Checking for live stock

More Information
Rating & Review

The Texas Instruments PTH08T260WAD is a power module that provides high-performance and efficient power solutions. This compact module integrates a synchronous buck converter with a power stage, control circuitry, and external components, offering a comprehensive power management solution. Its incorporated protection mechanisms and thermal performance ensure reliability and longevity. With versatility, this power module finds applications in industrial, telecommunications, and computing systems, meeting the power demands of various industries.

Key Attributes and Advantages of Using Texas Instruments PTH08T260WAD Include:

High Efficiency: The PTH08T260WAD module boasts high-efficiency levels, minimizing power losses and maximizing power conversion capabilities. This feature makes it suitable for various industrial, telecommunications, and computing systems applications.
Wide Input Voltage Range: With a wide input voltage range of 4.5V to 14V, this power module supports a variety of power supply configurations. It can effectively handle fluctuations in input voltages and maintain stable output power.
Adjustable Output Voltage: The PTH08T260WAD module allows users to adjust the output voltage through an external resistor. This feature provides flexibility and customization options to meet specific system requirements.
Integrated Protection Mechanisms: Texas Instruments has equipped the PTH08T260WAD with various protection mechanisms to safeguard against faults and potential damage. These include overcurrent protection, overtemperature protection, and under-voltage lockout, enhancing system reliability.
Thermal Performance: The power module features advanced thermal management techniques, ensuring efficient heat dissipation. This enables it to operate reliably even under high load conditions, preventing overheating and maintaining optimal performance.

Potential Applications of Texas Instruments PTH08T260WAD:

The PTH08T260WAD finds applications in a wide range of industries and systems, including:

Industrial Systems: This power module is well-suited for industrial automation, motor control, and robotics applications. Its high efficiency and reliability make it an excellent choice for demanding industrial environments.
Telecommunications: The PTH08T260WAD can be used in telecommunications equipment, such as base stations and network switches. Its wide input voltage range and robust protection mechanisms make it ideal for powering communication systems.
Computing Systems: This power module can furnish efficient and steady power to computing systems from servers to data centres. Its compact size and integrated elements make it qualified for space-constrained environments.
