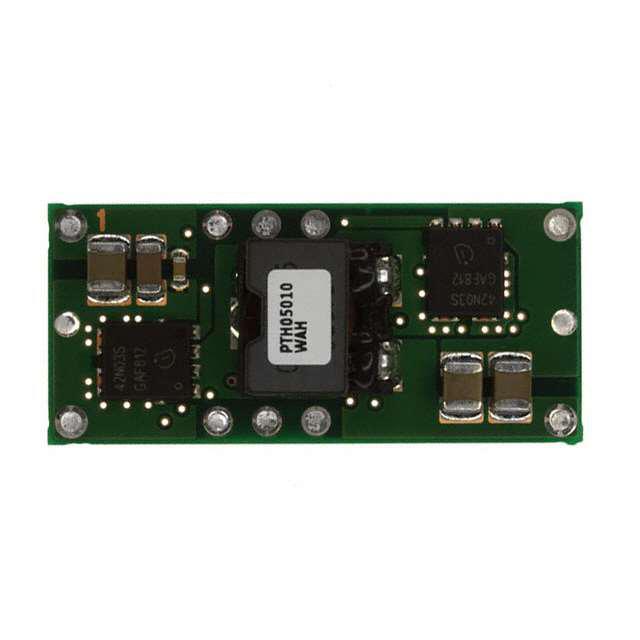

Texas Instruments PTH05010WAH

PTH05010WAH Texas Instruments
PTH05010WAH
PTH05010WAH
Texas Instruments

Product Information

Number of Outputs:
1
Dimensions:
34.8 x 15.75 x 8.75mm
Mounting Type:
Through Hole
Height:
8.75mm
Width:
15.75mm
Length:
34.8mm
Package Type:
DIP Module
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
10
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
0.8 ~ 3.6V
Operating Temperature:
-40°C ~ 85°C
Current - Output (Max):
15A
Package / Case:
10-DIP Module
Voltage - Input (Min):
4.5V
Type:
Non-Isolated PoL Module
Applications:
ITE (Commercial)
REACH Status:
REACH Unaffected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
PTH05010WAH Models
Efficiency:
95%
Voltage - Input (Max):
5.5V
edacadModelUrl:
/en/models/566421
Size / Dimension:
1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
standardLeadTime:
18 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
-
Mounting Type:
Through Hole
Series:
PTH05010W
Packaging:
Tray
Base Product Number:
PTH05010
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is PTH05010WAH. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 34.8 x 15.75 x 8.75mm. The product is available in through hole configuration. In addition, the height is 8.75mm. Furthermore, the product is 15.75mm wide. Its accurate length is 34.8mm. The package is a sort of dip module. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It contains 10 pins. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. It has a 0.8 ~ 3.6v output voltage. The product has -40°c ~ 85°c operating temperature range. The maximum product's output current is 15a. Moreover, the product comes in 10-dip module. It offers 4.5v of minimum input voltage. It comes in non-isolated pol module configuration. The product is widely employed in ite (commercial). In addition, it is reach unaffected. It is a highly efficient product with an 95% of high efficiency. Its maximum input voltage is 5.5v. The product's diameters include 1.37" l x 0.62" w x 0.35" h (34.8mm x 15.7mm x 8.9mm). It has a long 18 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product pth05010w, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. Moreover, it corresponds to pth05010, a base product number of the product. The product is designated with the ear99 code number.
