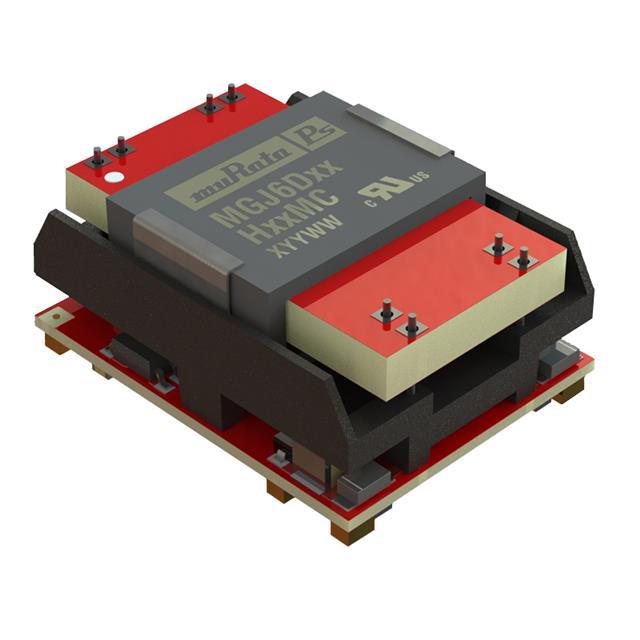

Murata Power Solutions Inc. MGJ6D12H24MC-R7

MGJ6D12H24MC-R7 Murata Power Solutions Inc.
Murata Power Solutions Inc.

Product Information

HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
24V
Power (Watts):
6 W
Current - Output (Max):
125mA, 125mA
Package / Case:
7-SMD Module
Voltage - Input (Min):
9V
Type:
Isolated Module
title:
MGJ6D12H24MC-R7
REACH Status:
REACH Affected
Voltage - Output 2:
24V
Voltage - Output 3:
-
edacadModel:
MGJ6D12H24MC-R7 Models
Efficiency:
84%
Applications:
ITE (Commercial), Medical
edacadModelUrl:
/en/models/6563053
Voltage - Input (Max):
18V
Supplier Device Package:
-
Size / Dimension:
1.16" L x 0.89" W x 0.56" H (29.5mm x 22.6mm x 14.1mm)
standardLeadTime:
14 Weeks
Voltage - Isolation:
5.2 kV
Moisture Sensitivity Level (MSL):
2 (1 Year)
Features:
SCP, UVLO
Mounting Type:
Surface Mount
Series:
MGJ6 (6W)
Operating Temperature:
-40°C ~ 105°C
Packaging:
Tape & Reel (TR)
Base Product Number:
MGJ6D12
Number of Outputs:
2
ECCN:
EAR99
Checking for live stock

This is manufactured by Murata Power Solutions Inc.. The manufacturer part number is MGJ6D12H24MC-R7. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. It has a 24v output voltage. The product features power and watts of 6 w. The maximum product's output current is 125ma, 125ma. Moreover, the product comes in 7-smd module. It offers 9v of minimum input voltage. It comes in isolated module configuration. In addition, it is reach affected. 24v of voltage output 2. It is a highly efficient product with an 84% of high efficiency. The product is widely employed in ite (commercial), medical. Its maximum input voltage is 18v. The product's diameters include 1.16" l x 0.89" w x 0.56" h (29.5mm x 22.6mm x 14.1mm). It has a long 14 weeks standard lead time. 5.2 kv of isolation voltage. Its typical moisture sensitivity level is 2 (1 year). The splendid features of the product include scp, uvlo. The product is available in surface mount configuration. The product mgj6 (6w), is a highly preferred choice for users. The product has -40°c ~ 105°c operating temperature range. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to mgj6d12, a base product number of the product. Additionally, the product is supplied with 2 outputs. The product is designated with the ear99 code number.
