Number of Outputs:
1
Load Regulation:
±0.3%
Isolation Voltage:
1.5kV dc
Standards Met:
CE, cUL/UL 60950-1, EN 45545-2, EN 50121-3-2, EN 50155, EN 60950-1, EN 61373, IEC 60571, IEC/EN 5055, IEC/EN 60950-1
Mounting Type:
Through Hole
Efficiency:
92%
Maximum Temperature:
+85°C

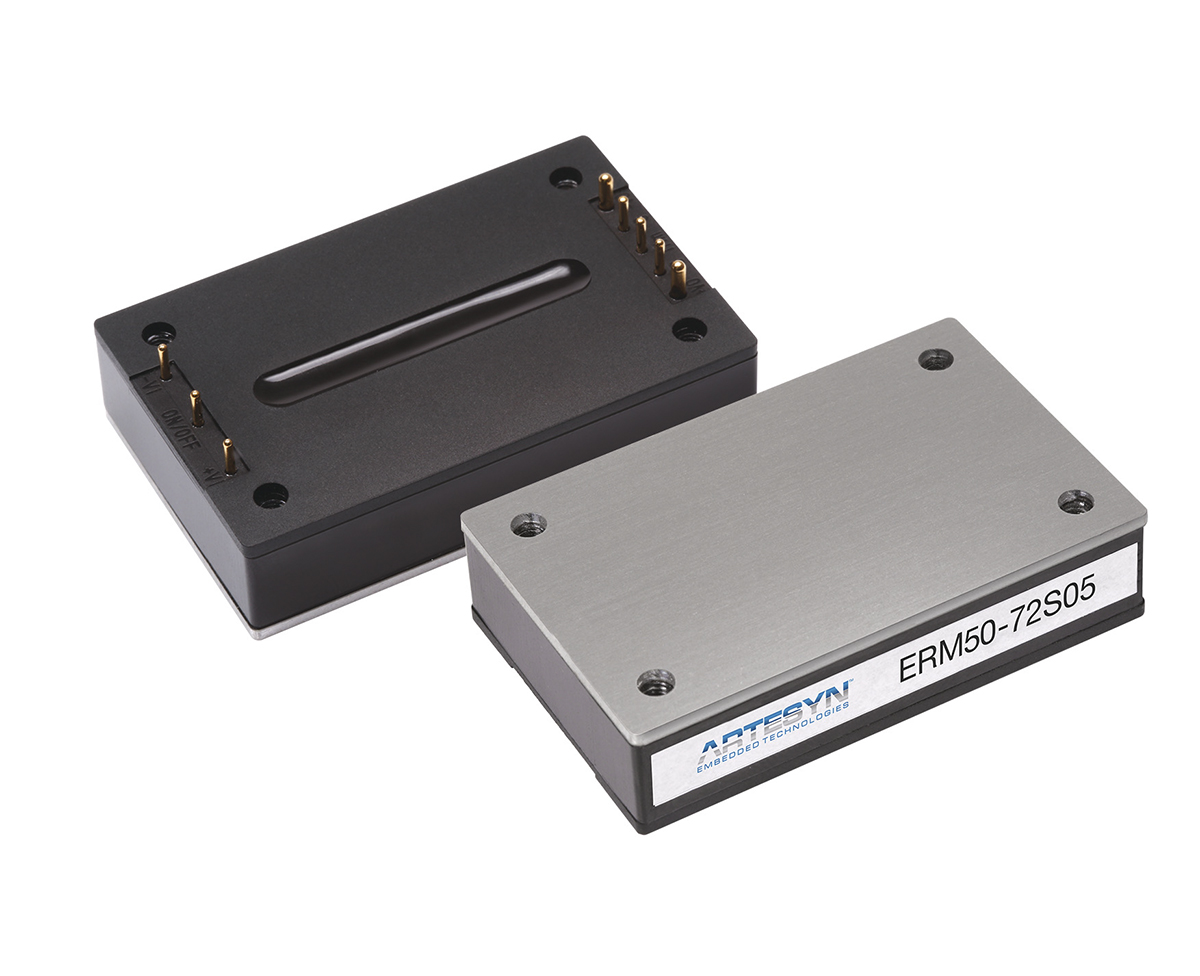

Series:
ERM50
Input Voltage Range:
43 → 101 V dc
Isolated:
Yes
Railway Approved:
Yes
Width:
36.8mm
Depth:
12.7mm
Output Voltage:
15V dc
Length:
57.9mm
Minimum Temperature:
-40°C
Input Voltage Nominal:
72 V dc
Power Rating:
50W
Output Current:
3.33A
Manufacturer Standard Lead Time:
10 Weeks
Size / Dimension:
2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Detailed Description:
Isolated Module DC DC Converter 1 Output 15V 3.33A 43V - 101V Input
Voltage - Isolation:
3kV
Features:
Remote On/Off, OCP, SCP, UVLO
Mounting Type:
Through Hole
Applications:
ITE (Commercial), Railway
Series:
ERM50 (50W)
Voltage - Output 1:
15V
Packaging:
Bulk
Efficiency:
92%
Power (Watts):
50W
Current - Output (Max):
3.33A
Voltage - Input (Max):
101V
Package / Case:
8-DIP Module
Operating Temperature:
-40°C ~ 85°C
Voltage - Input (Min):
43V
Type:
Isolated Module
Number of Outputs:
1
Manufacturer:
Artesyn Embedded Technologies
