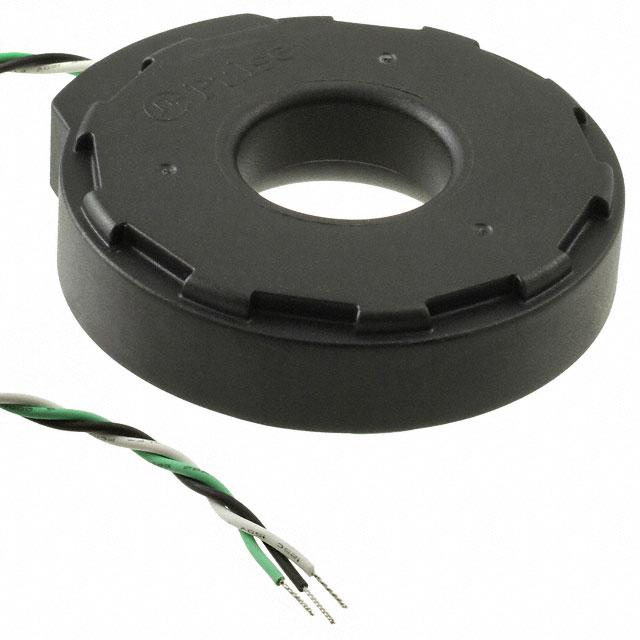

Pulse Electronics PA3209NL

PA3209NL Pulse Electronics
Pulse Electronics

Product Information

Ratings:
-
Frequency Range:
50/60Hz
Current Ratio:
-
HTSUS:
8504.50.8000
RoHS Status:
RoHS Compliant
Termination Style:
Wire Leads
Type:
Non-Invasive (Solid Core)
DC Resistance (DCR):
42Ohm Max
Height - Seated (Max):
0.580" (14.73mm)
REACH Status:
REACH Unaffected
Inductance:
3 mH
Package:
Tray
ET (Volt-Time):
-
Size / Dimension:
2.240" L x 2.098" W (56.90mm x 53.30mm)
Turns Ratio - Primary:Secondary:
Rogowski Coil
Current Rating (Amps):
1000 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Chassis Mount
Series:
Sidewinder®, PA32XXNL
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is PA3209NL. The frequency range includes 50/60hz. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs compliant. Moreover, it has wire leads terminal style. It comes in non-invasive (solid core) configuration. It allows DC resistance of 42ohm max. It has the maximum seated height of 0.580" (14.73mm). In addition, it is reach unaffected. The product has a 3 mh inductance value. It is shipped in tray package . The product's diameters include 2.240" l x 2.098" w (56.90mm x 53.30mm). The typical primary and secondary turn ratio is rogowski coil. Additionally, the product's output is 1000 a. Its typical moisture sensitivity level is 1 (unlimited). The product is available in chassis mount configuration. The product sidewinder®, pa32xxnl, is a highly preferred choice for users. The product is designated with the ear99 code number.

pdf icon
Mult Devs Location 14/Jan/2023(PCN Assembly/Origin)
pdf icon
PA3209NL Series(Datasheets)
pdf icon
Pulse Larson REACH(Environmental Information)
