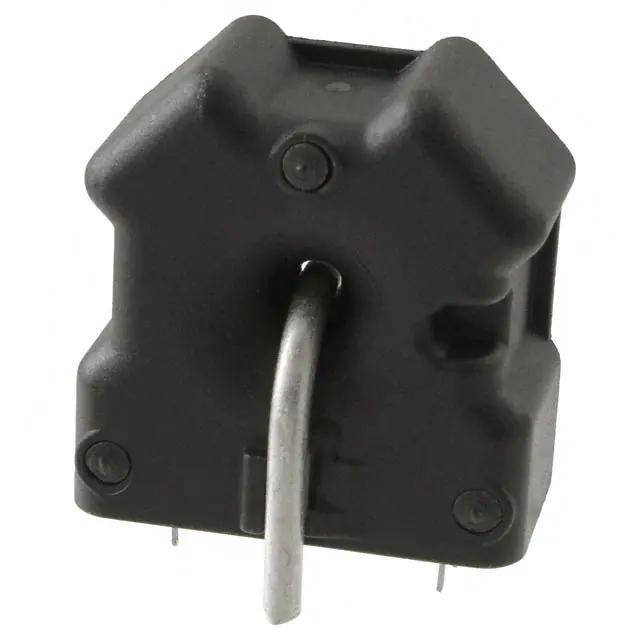

Pulse Electronics Power PA3206NL

PA3206NL Pulse Electronics Power
Pulse Electronics Power

Product Information

Ratings:
-
Frequency Range:
50/60Hz
Current Ratio:
-
HTSUS:
8504.50.8000
RoHS Status:
RoHS Compliant
Termination Style:
Wire Leads
Type:
Non-Invasive (Solid Core)
DC Resistance (DCR):
54Ohm Max
Height - Seated (Max):
1.220" (31.00mm)
REACH Status:
REACH Unaffected
Inductance:
1.14 mH
Package:
Tray
ET (Volt-Time):
-
Size / Dimension:
1.181" L x 0.563" W (30.00mm x 14.30mm)
Turns Ratio - Primary:Secondary:
Rogowski Coil
Current Rating (Amps):
40 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Chassis Mount
Series:
Sidewinder®, PA32XXNL
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics Power. The manufacturer part number is PA3206NL. The frequency range includes 50/60hz. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs compliant. Moreover, it has wire leads terminal style. It comes in non-invasive (solid core) configuration. It allows DC resistance of 54ohm max. It has the maximum seated height of 1.220" (31.00mm). In addition, it is reach unaffected. The product has a 1.14 mh inductance value. It is shipped in tray package . The product's diameters include 1.181" l x 0.563" w (30.00mm x 14.30mm). The typical primary and secondary turn ratio is rogowski coil. Additionally, the product's output is 40 a. Its typical moisture sensitivity level is 1 (unlimited). The product is available in chassis mount configuration. The product sidewinder®, pa32xxnl, is a highly preferred choice for users. The product is designated with the ear99 code number.

pdf icon
PA320(2,6,8)NL Series(Datasheets)
