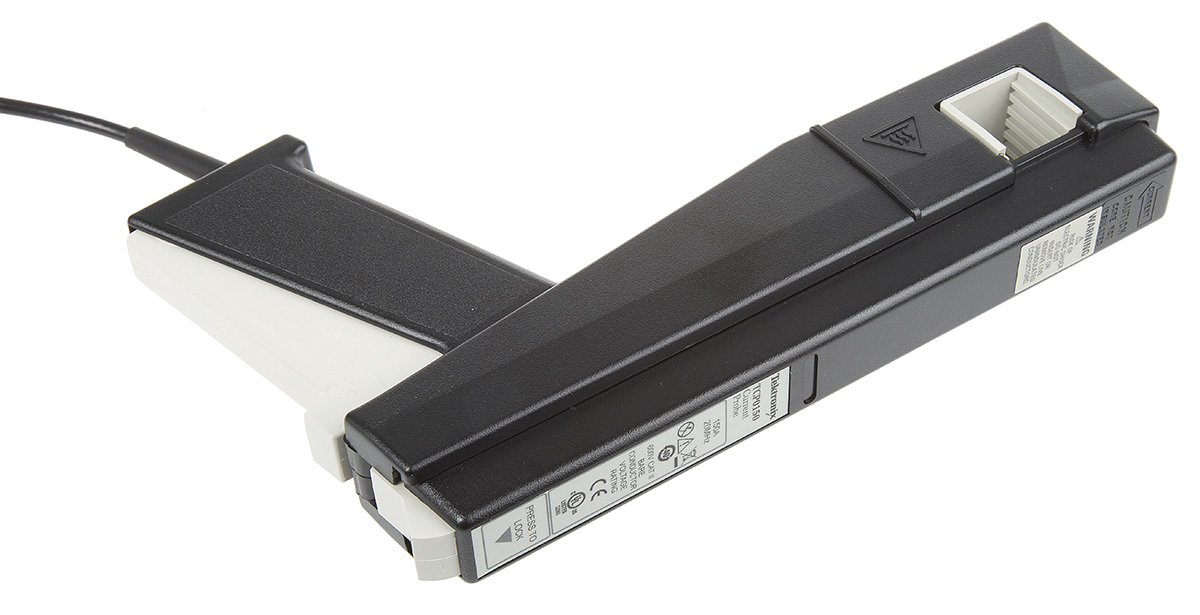

Tektronix TCP0150 AC/DC Current Probe

TCP0150 Tektronix AC/DC Current Probe
TCP0150
TCP0150
TCP0150 Tektronix AC/DC Current Probe
Tektronix

Product Information

Probe Type:
Current
Safety Category Voltage:
500V
Model Number:
TCP 0150
Safety Category Level:
CAT III, CAT II, CAT I
Bandwidth:
20MHz
Product Type:
Oscilloscope Probe
Checking for live stock

The Tektronix TCP0150 is a high-performance AC/DC current probe designed for seamless integration with the TekVPI™ interface. It offers a wide 20 MHz bandwidth for precise AC and DC measurements up to 150 Amps. This tool simplifies complex power analysis in industrial and consumer electronics. Its split-core design allows for easy connection to conductors without breaking the circuit. Engineers rely on its high accuracy and low noise for critical signal integrity tasks.

Why Do Users Prefer This Product?

Users prefer this Tektronix TCP0150 AC/DC current probe for its effortless oscilloscope connectivity and superior measurement accuracy across a broad dynamic current range.

  • Direct Integration: It connects directly to TekVPI™ oscilloscopes, eliminating the need for separate power supplies or external amplifiers.
  • High Sensitivity: Accurately measures low-level signals down to 5 mA, making it ideal for delicate semiconductor testing.

Main Features & Technical Data

  • Bandwidth: DC to 20 MHz.
  • Current Capability: 150 A RMS maximum; 500 A peak pulse.
  • Sensitivity: Measures levels as low as 5 mA per division.
  • Interface: TekVPI™ probe interface for automatic scaling and readout.
  • Core Type: Split-core probe head for non-intrusive conductor connection.
  • DC Gain Error: Typically less than 1%.
  • Safety Rating: CAT I, II (600 V) and CAT III (300 V).

pdf icon
TCP0150 AC/DC Current Probe Data Sheet(Technical Reference)
pdf icon
Digital Phosphor Oscilloscopes MSO2000 Series DPO2000 Series Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship TCP0150 Internationally to many countries around the world.
Yes. You can also search TCP0150 on website for other similar products.
We accept all major payment methods for all products including ET14049395. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14049395 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Tektronix" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14049395.
You can order Tektronix brand products with TCP0150 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Current Clamps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Tektronix TCP0150 AC/DC Current Probe. You can also check on our website or by contacting our customer support team for further order details on Tektronix TCP0150 AC/DC Current Probe.
